Specifications:

Brand: EB-LINK

Product Name: PCIe x16 to Single Port NVMe Adapter Card

Interface: PCIe 4.0 x16 to NVMe M.2

Features: Enhances hard drive performance, high-speed expansion and transfer, RoHS compliant

Installation: Easy to install

Performance: Stable and high-speed data transfer

Compatibility: Supports M-KEY NVMe protocol, SSD lengths including 2230, 2242, 2260, 2280

Speed: NVMe (64Gbps)

Protocol: NVMe PCI-E

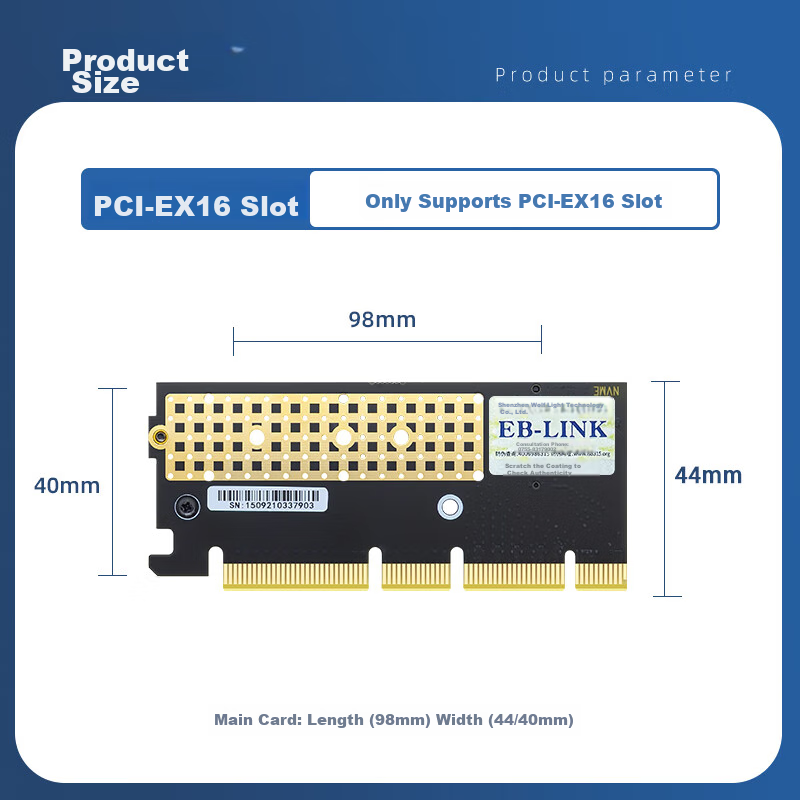

Dimensions: 98*44*40mm

Operating Temperature: 0°C to 60°C, Storage Temperature: -20°C to 80°C

Power Supply: PCIe

Driver: Plug and play, no driver required

Input Voltage: DC 3.3V, Input Current: 3A

Manufacturer: Shenzhen Wolf Light Technology Co., Ltd.

Contact Number: 0755-83179002

Authentication: Scratch-off coating for authenticity verification

Installation Steps:

1. Insert M.2 SSD into the slot

2. Secure the SSD with screws

3. Attach the adapter card to the PCIe interface

4. Secure the adapter card in the chassis with screws

For detailed information, please visit the official website or contact the manufacturer.
