**Product Specifications:**
**Brand:** CNCOB
**Model:** CN-MD2001-C6
**Material:** PC shell

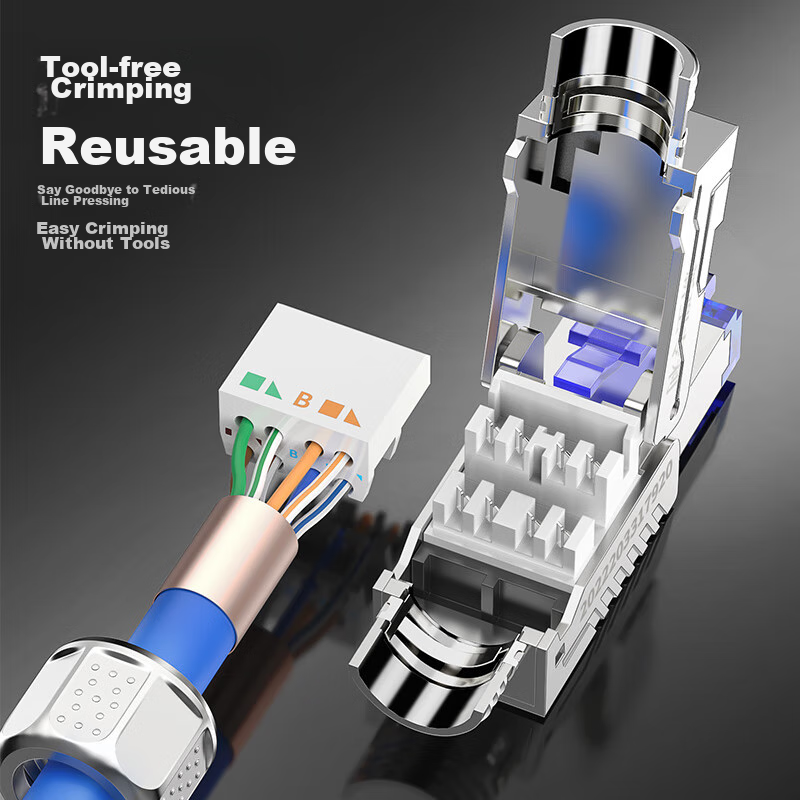

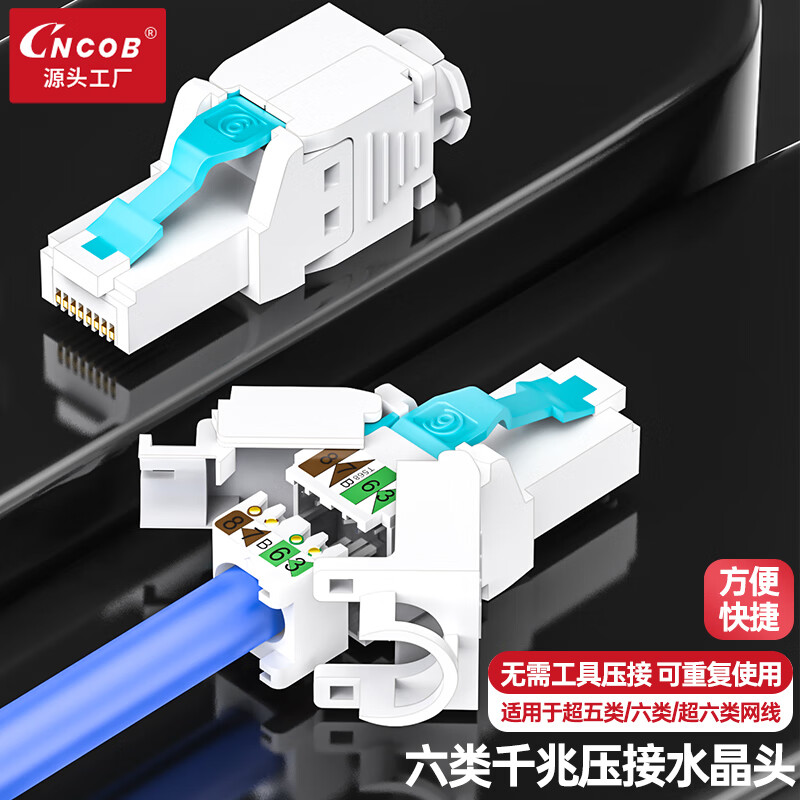

**Function:** Tool-free repeated use, thickened gold-plated chip
**Compatibility:** CAT6, stable transmission, no tools required, can be reused, passes Fluke test
**Features:** Anti-oxidation, rust-proof, supports 22-24AWG wire core specifications, supports outer diameter of 6.5-8.5mm, suitable for Cat5e/6/6a cables
**Application:** Suitable for home/office networking, gaming, streaming, downloading, etc.
**Quality:** High-quality construction for long-lasting stability and performance

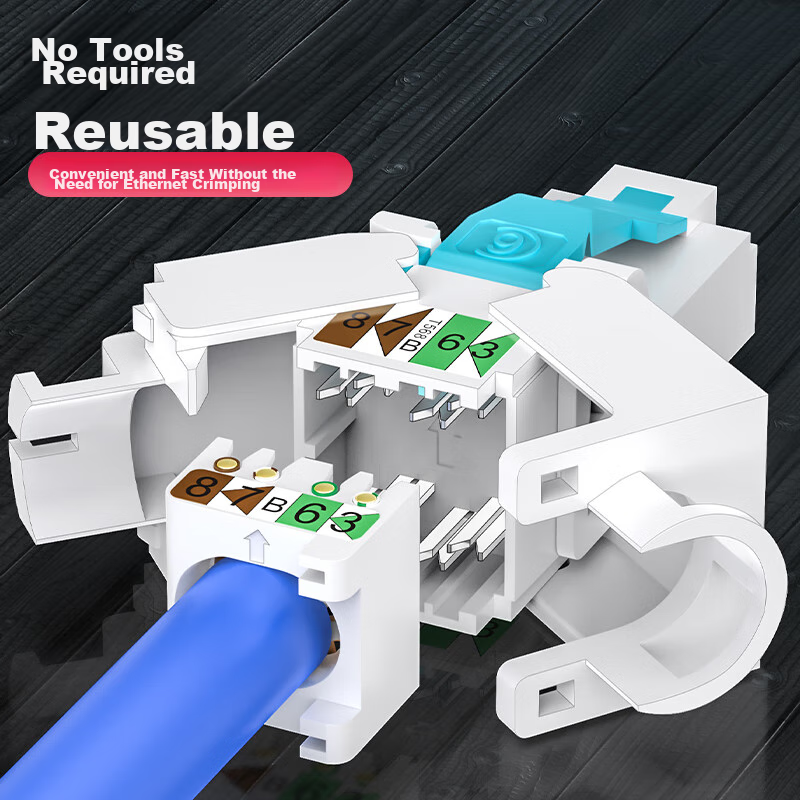

**Installation:** Simple and quick installation process with clear color-coded labels for accurate setup

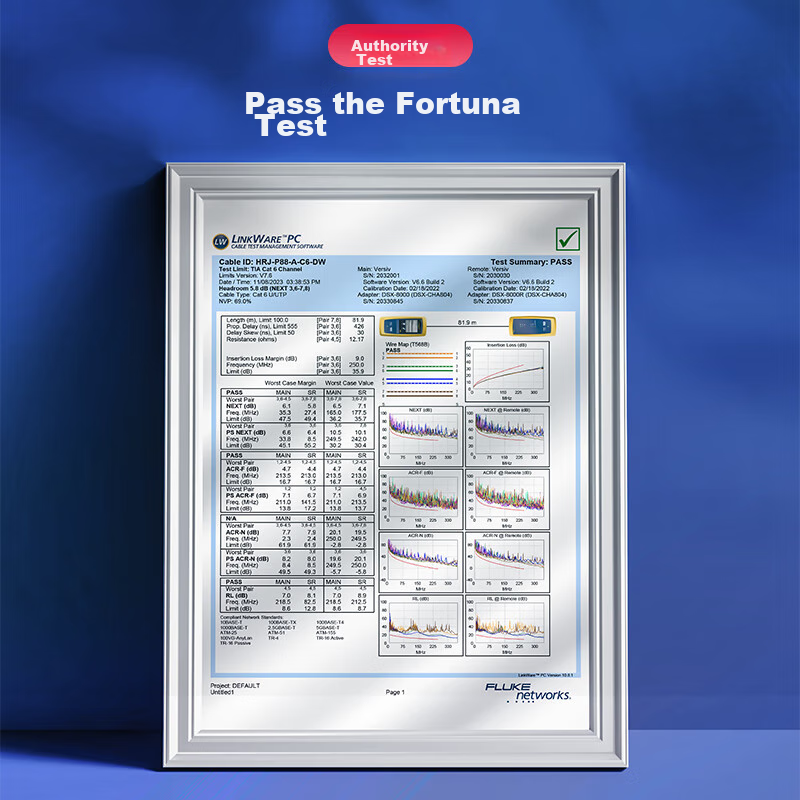

**Testing:** Passed Fluke test, LW, LINKWARE "PC, CableID: HRJ-P88-A-C6-DW, Mshi 200201, Test Summary: PASS, V7.6, SN2030030, Cat6U/UTF, 31.9r, 89Ld, 25, dualllu, FLUKE networks

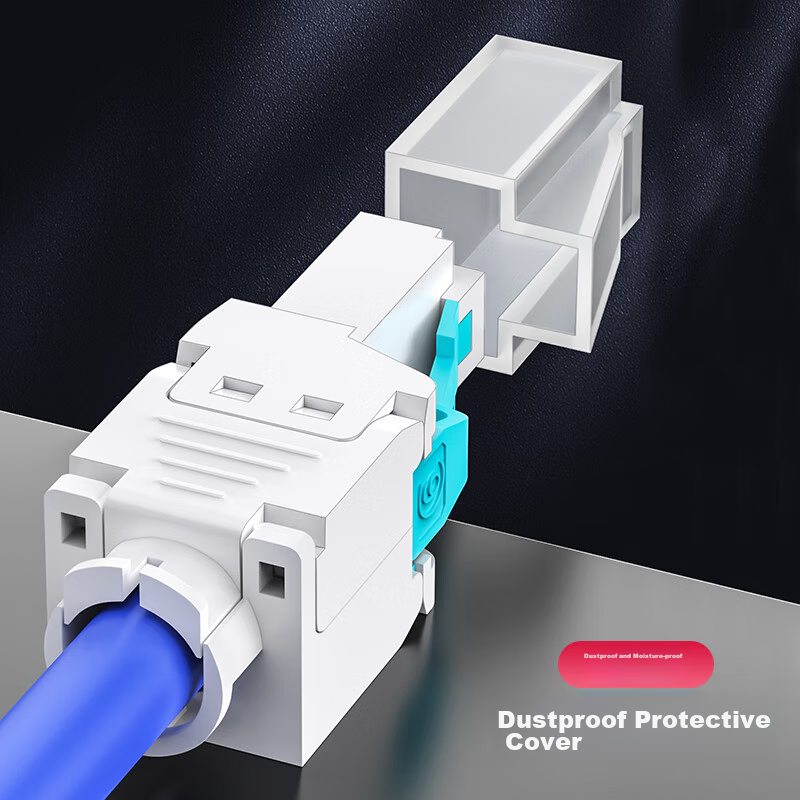

**Protection:** Dust and moisture resistant with protective cover
**Dimensions:** 14.5mm x 15.7mm x 43.5mm (may have slight manual measurement errors)
**Application Scenarios:**
Widely used in home renovations, high-end clubs, surveillance, educational networks, data centers, telecom rooms, internet cafes, etc.
**Installation Steps:**
1. Strip about 40mm of the cable's outer sheath
2. Cut off the cross core
3. Arrange the wire cores in order
4. Insert the twisted pair into the correct slot according to the color-coded sequence
5. Cut off excess wire cores to be no more than 0.2mm
6. Match any one of the markings on the diagram
7. Place the wire organizer into the module body

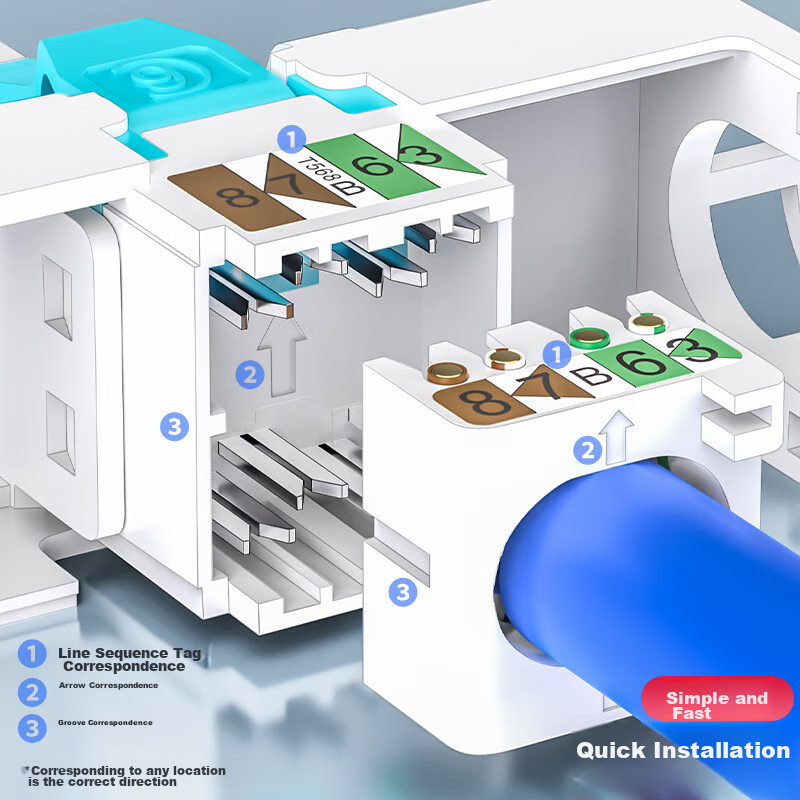

8. Ensure the wire sequence label corresponds, arrow direction corresponds, groove corresponds
9. Close both side covers tightly to complete installation.
