热卖华为万兆单模光纤模块OSX010000/交换机、路由器、服务器SFP+-10G单模光纤模块（1310nm、10km、LC）

**Specifications:**

**Brand:** HUAWEI

**Model:** OSX010000

**Description:** 10G Single-mode Optical Module

**Compatibility:** Suitable for HUAWEI enterprise network products including switches, routers, firewalls, and servers with optical ports

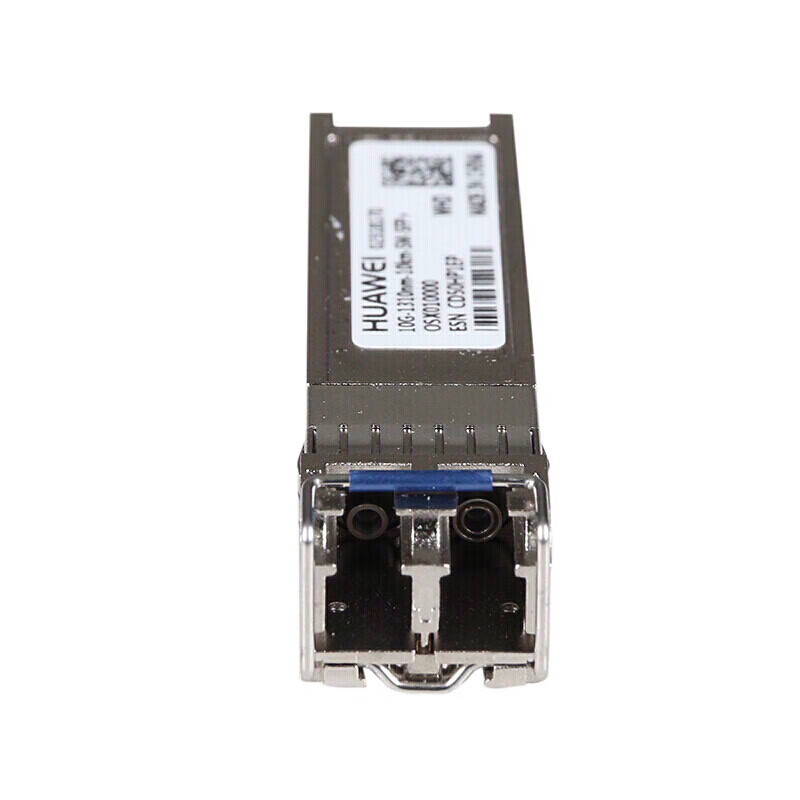

**Appearance:** Connector 81, Label 51, Skirt 7, Dust Cap 6, 4 Shell Body, 1, 3, 2, Pull Tab

**Interface:** Transmit Interface, Receive Interface

**Product Parameters:**

**Module Name:** OSX010000

**Part Number:** 2318170

**Model:** OSX010000

**Package:** SFP+

**Interface Standard:** 10GBASE-LR

**Connector Type:** LC

**Fiber Type:** SMF

**Operating Shell Temperature [°C]:** 0°C~70°C

**Transmission Rate [bit/s]:** 10Gbit/s

**Target Transmission Distance [km]:** Single-mode fiber: 10km

**Transmitting End Optical Parameters:**

- Center Wavelength [nm]: 1310nm

- Maximum Transmit Power [dBm]: 0.5dB

- Minimum Transmit Power [dBm]: -8.2dBm

- Minimum Extinction Ratio [dB]: 3.5dB

**Receiving End Optical Parameters:**

- Receiver Sensitivity [dBm]: -12.6dBm

- Overload Optical Power [dBm]: 0.5dBm

**Product Specifications:**

Various models available:

- 10G Single-mode Optical Module

- 10G Multi-mode Optical Module

- SFP-GE-LX-SM1310

- eSFP-GE-SX-MM850

- OSX010000

- 10G Multi-mode Optical Module

- 10G Optical to Electrical Module

- OSX040N01

- S-SFP-GE-LH40-SM1310

- S-SFP-GE-LH40-SM1550

- S-SFP-GE-LH80-SM1550

**Note:** It is recommended to use HUAWEI certified optical modules for reliable and stable performance. Non-certified modules may lead to unstable operations and HUAWEI will not be responsible for any issues caused by non-certified modules. HUAWEI certifies optical modules for functionality, ensuring quality through comprehensive verification of features such as insertion/removal, optical power transmission, signal transmission quality, basic information retrieval, fault tolerance, compatibility, EMC, and environmental performance.
