**Specifications:**

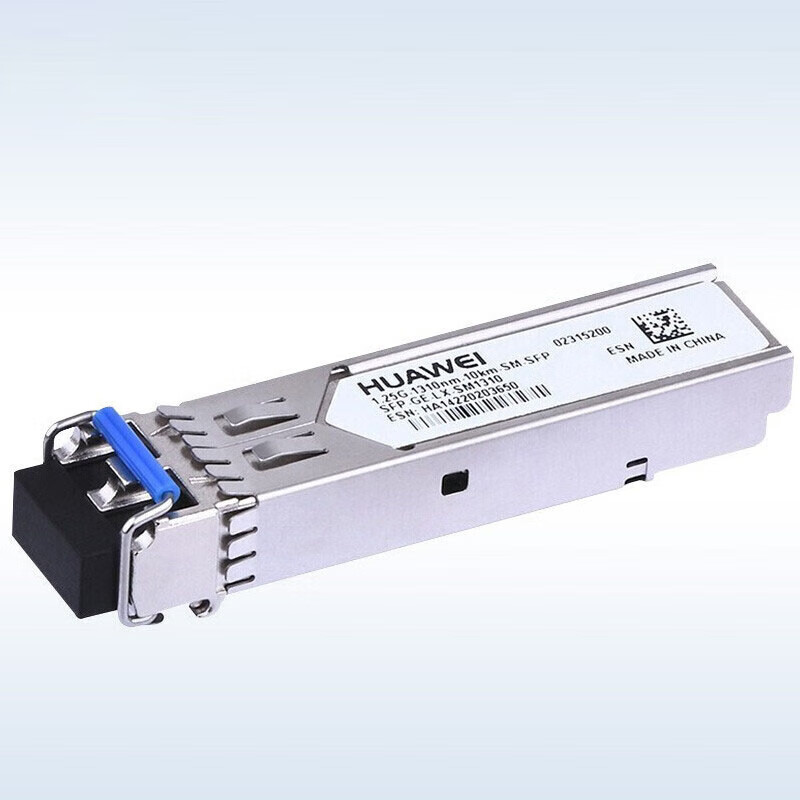

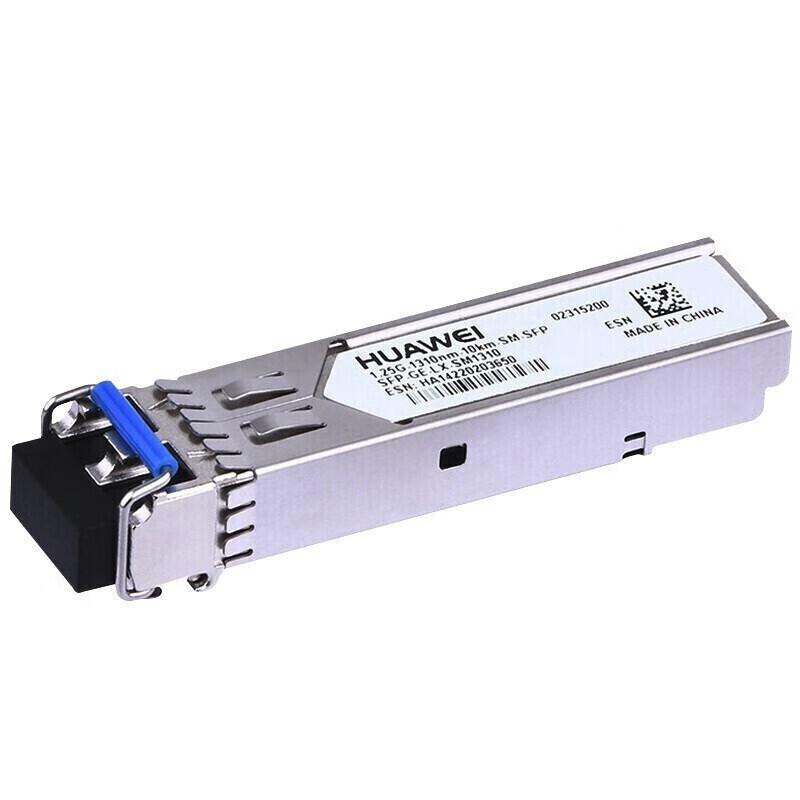

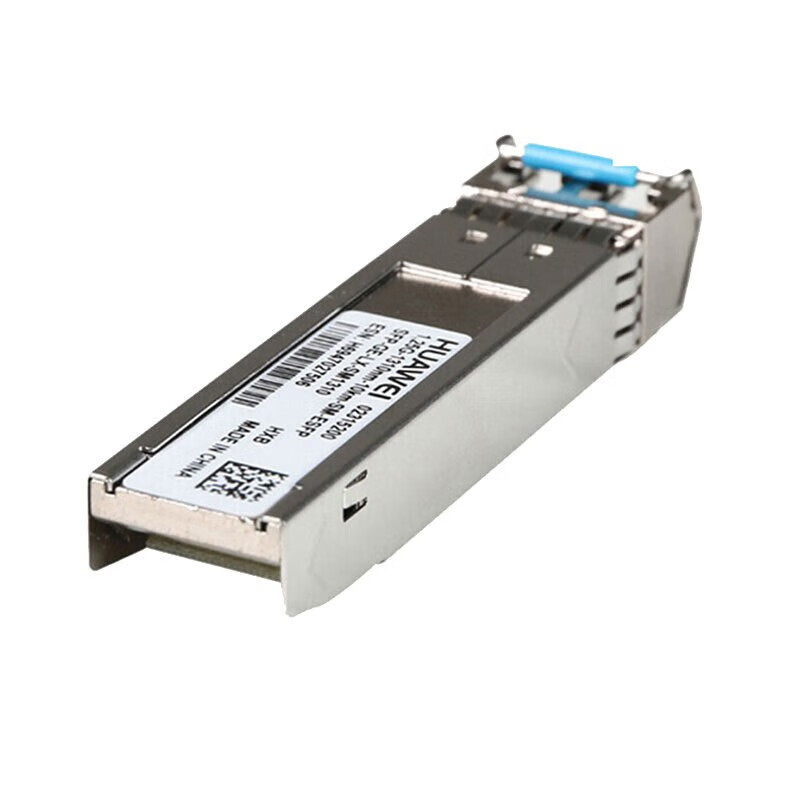

**Module Name:** SFP-GE-LX-SM1310
**Part Number:** 02313URF
**Model:** SFP-GE-LX-SM1310
**Package:** eSFP
**Interface Standard:** 1000BASE-LX10/LH
**Connector Type:** LC
**Fiber Type:** SMF
**Operating Temperature:** 0°C to 70°C
**Transmission Rate:** 1Gbit/s
**Target Transmission Distance:** Single-mode fiber: 10km
**Transmitter Optical Parameters:**
- **Center Wavelength:** 1310nm
- **Maximum Transmit Power:** -3.0dBm
- **Minimum Transmit Power:** -9.0dBm
- **Minimum Extinction Ratio:** 9dB
**Receiver Optical Parameters:**
- **Receiver Sensitivity:** -20.0dBm
- **Overload Power:** -3.0dBm
**Product Specification:** 02315200, ESH, SM-SFP, MADE IN CHINA
**Additional Models:**
SFP-GE-LX-SM1310
eSFP-GE-SX-MM850
OSX010000
S-SFP-GE-LH40-SM1310
S-SFP-GE-LH40-SM1550
S-SFP-GE-LH80-SM1550
OMXD30000
SFP-1000BaseT
OSX040N01
**Warm Reminder:**
HUAWEI recommends using certified optical modules for their networking products to ensure reliability and stability.
Non-certified modules may lead to unstable performance and HUAWEI will not be responsible for issues caused by non-certified modules.
**Core Capabilities:**
Stable performance, low power consumption
Imported chips, safe materials
Gold-plated connectors for superior quality
Strict control over gold plating thickness for optimal connection quality
**Note:** The information provided is based on theoretical data and actual performance may vary in different environments. The mentioned technical comparisons are for explanatory purposes only and do not serve any other intent.
