热卖DCN 5口千兆交换机、企业级台式网络分线器、非网管型家庭宿舍监控交换机、ES1205

**Product Specifications:**

**Brand:** DCN

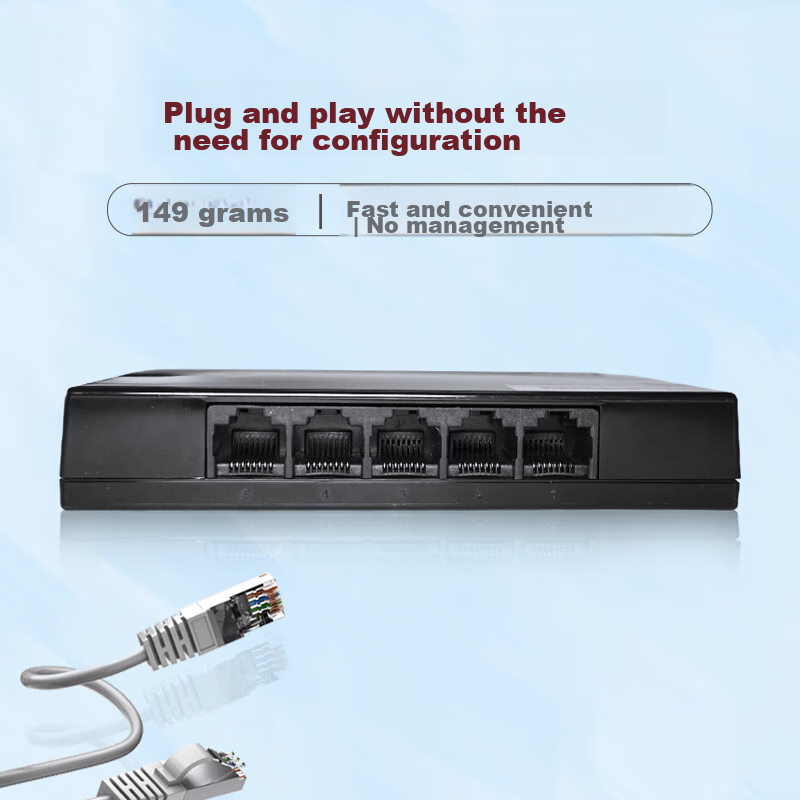

**Plug and Play:** No configuration required, simply plug in and use

**Ports:** 5 x 10/100/1000M Ethernet ports for easy connection

**Installation:** Simple and easy, no management required

**Stable Connection:** Ensures stable and smooth performance without lagging

**Speed:** Gigabit speed for faster performance

**Switching Capacity:** 10Gbps

**Packet Forwarding Rate:** 7.44Mpps

**Lightning Protection:** Built-in professional lightning protection circuit for added safety and reliability

**Versatile Use:** Suitable for various industries and scenarios

**Green and Energy Efficient:** Noiseless design

**Non-Network Management Series Switches:**

| Model | Ports | POE | Switching Capacity | Packet Forwarding Rate | Dimensions | Material | Rack-Mountable |

|-------|-------|-----|--------------------|------------------------|------------|----------|----------------|

| ES1205 | 5 x Gigabit Ethernet ports | No | 10Gbps | 7.44Mpps | 125*65*22mm | Plastic | No |

| ES1205 | 5 x Gigabit Ethernet ports | No | 10Gbps | 7.44Mpps | 140*76*27.7mm | Metal | No |

| ES1008D | 8 x Fast Ethernet ports | No | 16Gbps | 11.9Mpps | 140*67*26mm | Metal | No |

| ES1208 | 8 x Gigabit Ethernet ports | No | 16Gbps | 13.392Mpps | 280*180*44.3mm | Desktop | Yes |

| ES1210P | 8 x Gigabit Ethernet ports | Yes | 20Gbps | 14.88Mpps | 190*100*28mm | Desktop | No |

| ES1216 | 16 x Gigabit Ethernet ports | No | 32Gbps | 23.8Mpps | 280*126*44mm | Desktop | Yes |

| ES1218P | 16 x Gigabit Ethernet ports | Yes | 36Gbps | 26.784Mpps | 440*208*44mm | Desktop | Yes |

| ES1224 | 24 x Gigabit Ethernet ports | No | 52Gbps | 38.7Mpps | 440*208*44mm | Metal | Yes |

| ES1226P | 24 x Gigabit Ethernet ports | Yes | 52Gbps | 38.688Mpps | 440*208*44mm | Metal | Yes |

| ES1250G | 48 x Gigabit Ethernet ports | No | 100Gbps | - | 440*208*47mm | Metal | Yes |

**Product Parameters (ES1205):**

- Device Ports: 5 x Gigabit Ethernet ports

- MAC Address Capacity: 2K

- Switching Capacity: 10Gbps

- Packet Forwarding: 7.44Mpps

- Packet Buffer: 1.5Mbit

- Jumbo Frame: 16367Bytes

- Usage Mode: Plug and Play

- Cooling: Natural cooling

- Power Consumption: ≤1.6W

- Operating Temperature: 0℃~45℃

- Storage Temperature: -40℃~70℃

- Operating Humidity: 10%~90%RH non-condensing

- Storage Humidity: 5%~90%RH non-condensing

- Rated Power Supply: 220V adapter, DC5V/1A

- Port Lightning Protection: 4KV for regular ports, 6KV for POE ports

- Standard Protocols: IEEE802.31, IEEE802.3U, IEEE802.3AB, IEEE802.3Z, IEEE802.3X, IEEE802.3AD, IEEE802.1Q, IEEE802.1P
