**Product Specifications:**

**Brand:** SUPERLEAD

**Model:** 7201

**Reading Accuracy:** 4mil

**Interface:** USB, RS232

**Sensor Pixels:** 640 pixels (H) x 480 pixels (V)

**Light Source:** Illumination: 6500K LED

**Field of View:** 72° (H) x 64° (V)

**Sensitivity:** Tilt ±65°, Rotation 360°, Deflection ±70°

**Print Contrast:** 20%

**Dimensions:** 83mm x 80mm x 147mm

**Weight:** Approximately 292g

**Voltage/Current:** 3.3-5VDC/200mA (operating); 90mA (standby)

**Motion Tolerance:** ≥2m/s

**Supported 2D Code Systems:** PDF417, MicroPDF417, DataMatrix, Maxicode, QRCode, MicroQR, Aztec, Hanxin, etc.

**Supported 1D Code Systems:** UPC, EAN, Code128, Code39, Code93, Code11, Matrix2of5, Codabar, Interleaved2of5, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.

**Reading Distance:**

- 6.88mil (PDF417): 0mm-50mm

- 10mil (DataMatrix): 0mm-50mm

- 13mil (UPC-A): 5mm-110mm

- 20mil (QR): 0mm-100mm

**Operating Temperature:** -30°C to 70°C

**Storage Temperature:** -40°C to 70°C

**Humidity:** 0% to 95% RH, non-condensing

**Shock Resistance:** Withstands 1.5m drop test

**Ambient Light Immunity:** 100,000 Lux

**Features:**

Adjustable scanning angle of 55°

Compact size with large reading angle

High-speed scanning at 2.5m/s

Supports various barcode types including 1D and 2D codes

Automatic scanning and sleep mode

Anti-repeating function for accurate transactions

Suitable for various applications such as cashier scanning, customer service, ticket validation, etc.

**Application Scenarios:**

Cashier scanning

Customer service counters

Product scanning

Ticket validation

Healthcare services

**Packaging:**

Includes Certificate of Compliance

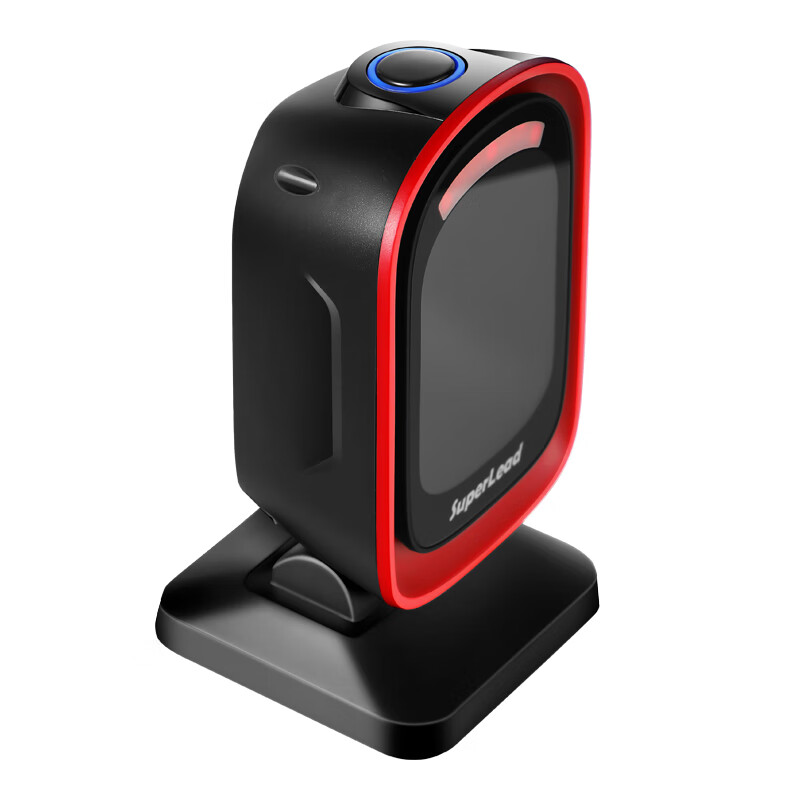

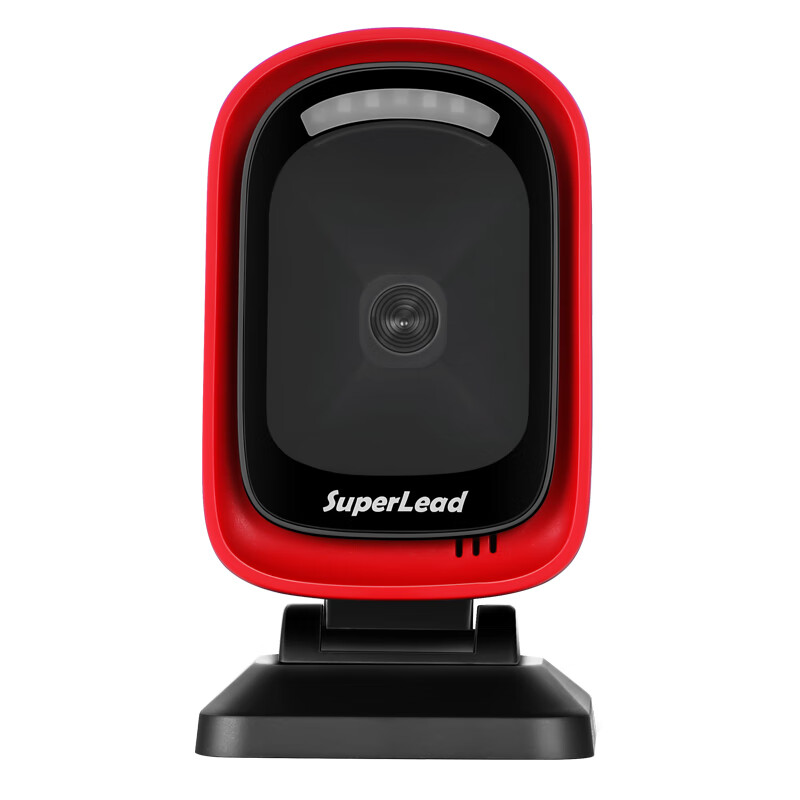

**Appearance:**

Sleek design with SUPERLEAD branding
