**Product Specifications:**

**Brand:** ID-COOLING

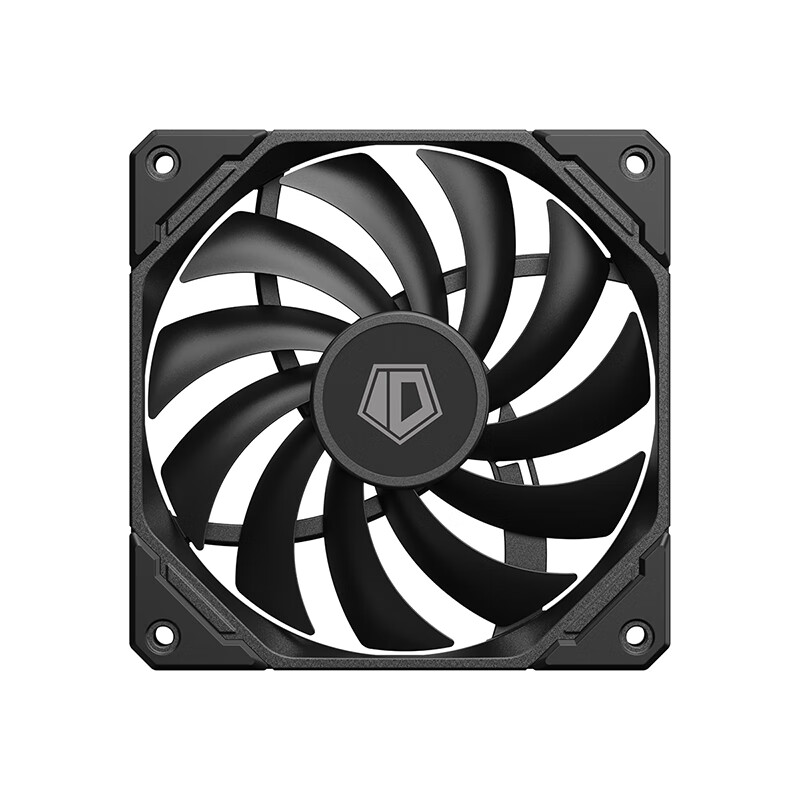

**Product Name:** 12CM Case Fan

**Model:** TF-12015-K

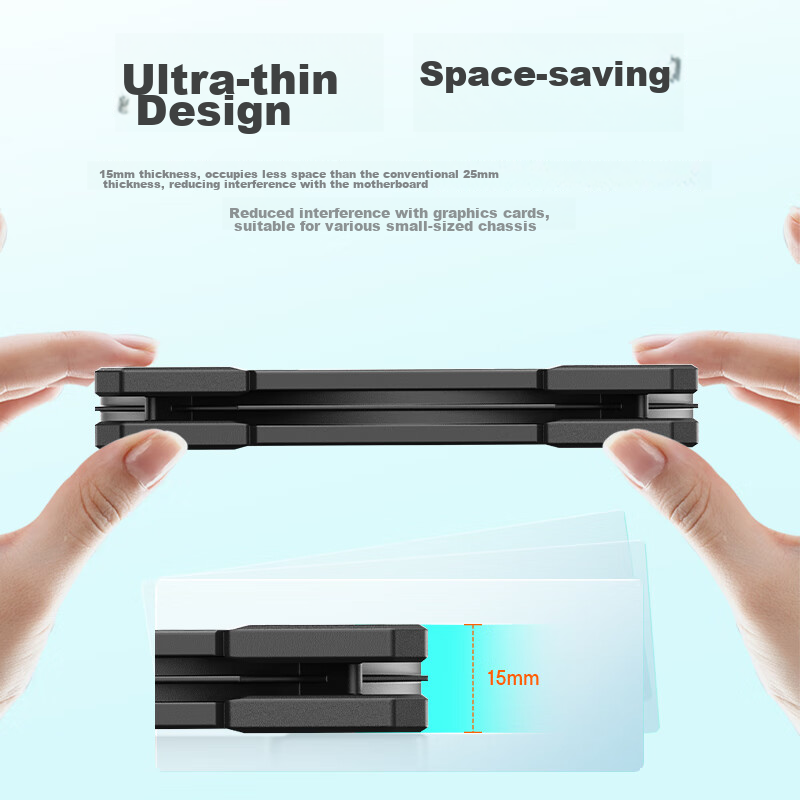

**Product Dimensions:** 120×120x15mm

**Noise Level:** ≤32.3dB(A)

**Speed:** 500~2200RPM±10%

**Airflow:** 67.58CFM

**Air Pressure:** 1.54mmH20

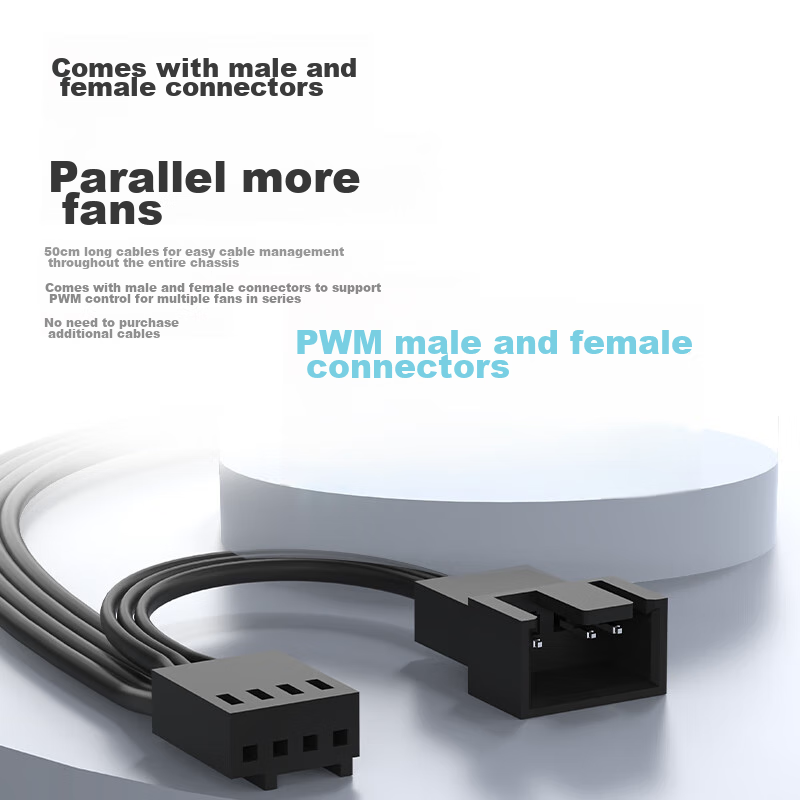

**Fan Interface:** 4PIN PWM Speed Control + Male-Female Connector

**Operating Voltage:** 12Vdc

**Rated Current:** 0.28A

**Input Power:** 3.36W

**Bearing Type:** Hydraulic Bearing

**Warranty:** 1 year

**Packaging:** Exquisite Box Packaging

*Note: Dimensions and weights are manually measured and may have slight errors due to product updates.*

**Fan FAQ:**

1. *How to adjust fan speed?*

- You can adjust the fan speed in the motherboard BIOS or related software.

2. *How to distinguish between the intake and exhaust sides of the fan?*

- For fans with logo on the blades, the side with the logo is the intake side, and the side with model parameters is the exhaust side.

3. *How to set up the airflow direction in the case?*

- It is recommended to have front intake and rear exhaust airflow. Bottom intake and top exhaust is also a good setup.

4. *How to install the fan?*

- Tighten the screws diagonally in a 1324 pattern until snug. Do not overtighten as it may affect the anti-vibration function.

5. *How many fans can be daisy-chained together?*

- The number of fans that can be daisy-chained depends on the power supply from the motherboard. Typically, 4-5 fans can be connected to a single SYSFAN output. If more power is needed, consider using a hub connected to the PSU for additional fans.
