**Product Specifications:**
**Brand:** 3M
**Slogan:** "Science. Applied to Life."
**Product Focus:** Electrical Tapes
**Quality Assurance:** Over 20 years of quality guarantee
**Anti-Counterfeiting Hotline:** [Not provided]
**Manufacturing:** Established in the 1990s at 3M Shanghai Industrial Park

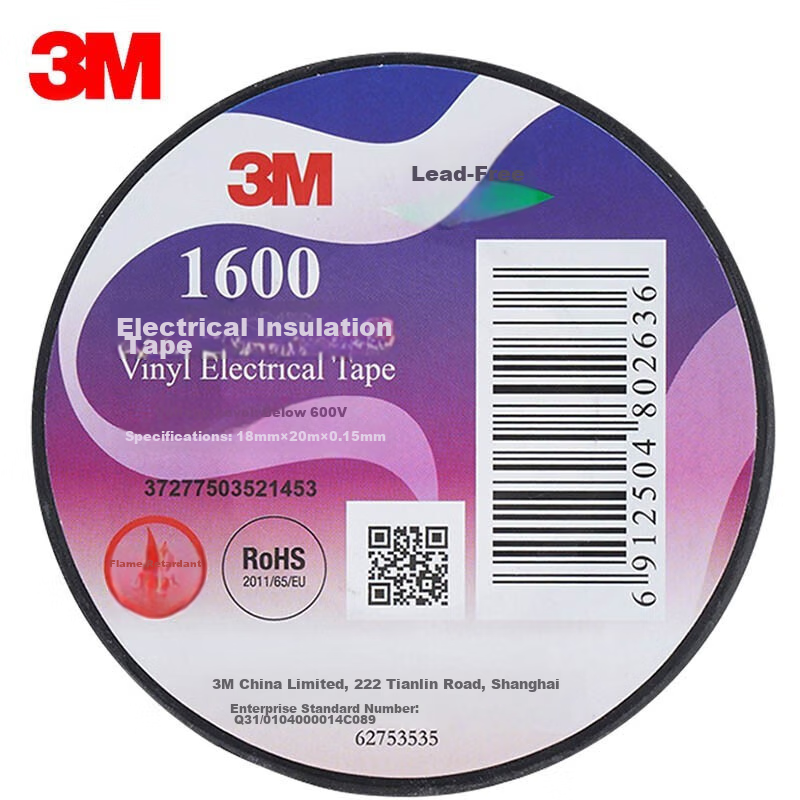

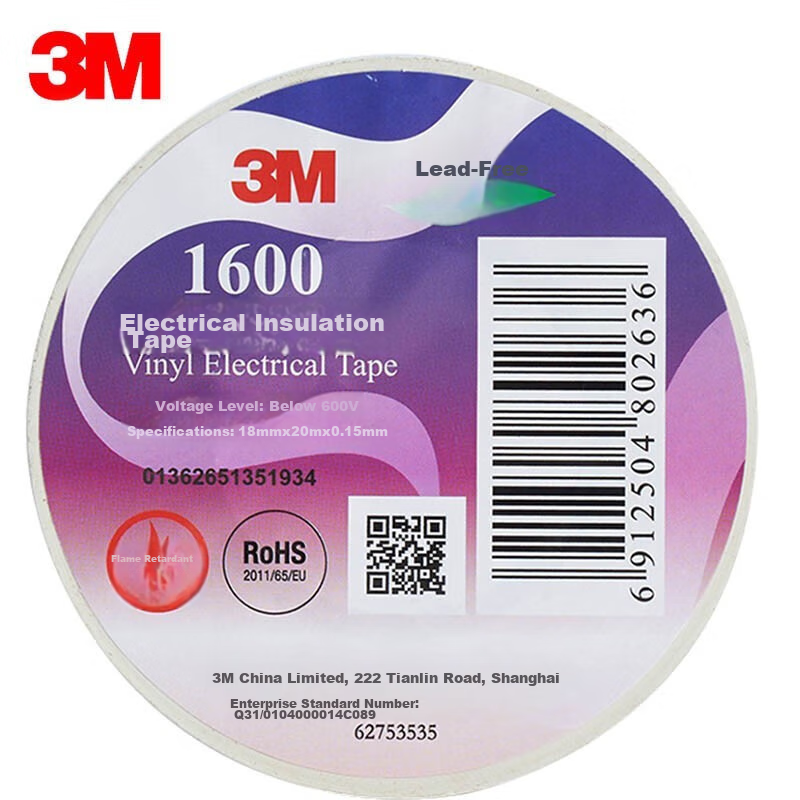

**Product Name:** 3M TM1600 General Purpose Electrical Insulation Tape
**Features:** Excellent adhesion, no edge curling, outstanding toughness, flame retardant
**Certifications:** RoHS, EU Certification
**Safety Standards:** UL510, UL94
**Material:** Premium quality, no recycled materials used
**Flame Retardancy:** Self-extinguishing upon leaving the flame source
**Test Reports:** SGS Test Report, UL510, UL94 Test Reports
**Inspection:** STIEEA, STIEE
**Inspection Report:** UL510:2020, UL94-2013
**RoHS Compliance:** Passed heavy metal safety tests
**Application:** Electrical insulation up to 600V, cable bundling, home renovation, electronics repair, etc.
**Technical Parameters:**
- **Temperature Range:** 0.08-00
- **Colors:** Black, Red, Yellow, Blue, Green, White, Yellow-Green
- **Size:** 20m (Length) x 18mm (Width) x 0.15mm (Thickness)
- **Maximum Stretch:** 150%
- **Tensile Strength:** 16 Ibs/in
- **Adhesion to Steel:** 18 oz./in
- **Adhesion to Backing:** 18 oz./in
- **Electrical Performance:**
- **Voltage Rating:** Up to 600V
- **Dielectric Strength:** >39.37kV/mm (1000V/mil)
- **Insulation Resistance:** >10^12Ω
**Q&A:**
- **Q:** Is higher stickiness better for electrical tapes?
- **A:** The stickiness of electrical tapes is measured based on the surface adhesion to steel or backing, not just the tactile feel. Proper stickiness prevents adhesive overflow and detachment issues.
**Product Range:**
- **3M Electrical Insulation Tapes:**
- **Product Name:** 3M 1600 Electrical Insulation Tape
- **Length:** 20m
- **Temperature Rating:** -18°C
- **Certifications:** UL, CSA, RoHS2.0, REACH
- **Origin:** USA
- **Color:** Black
- **Performance Rating:** ★★★★★
**Note:** All data provided are typical values and not product specifications. Testing methods comply with ASTM D-100 standards.
(Note: The information provided is based on the input and may not reflect the complete product specifications. Please refer to official documentation for detailed specifications.)
