**Product Specifications**
**Brand:** CHOSEAL
**Product Name:** HDMI2.0 High Definition Cable
**Model:** QS8101
**Resolution:** 4K*2K
**Bandwidth:** 18Gbps

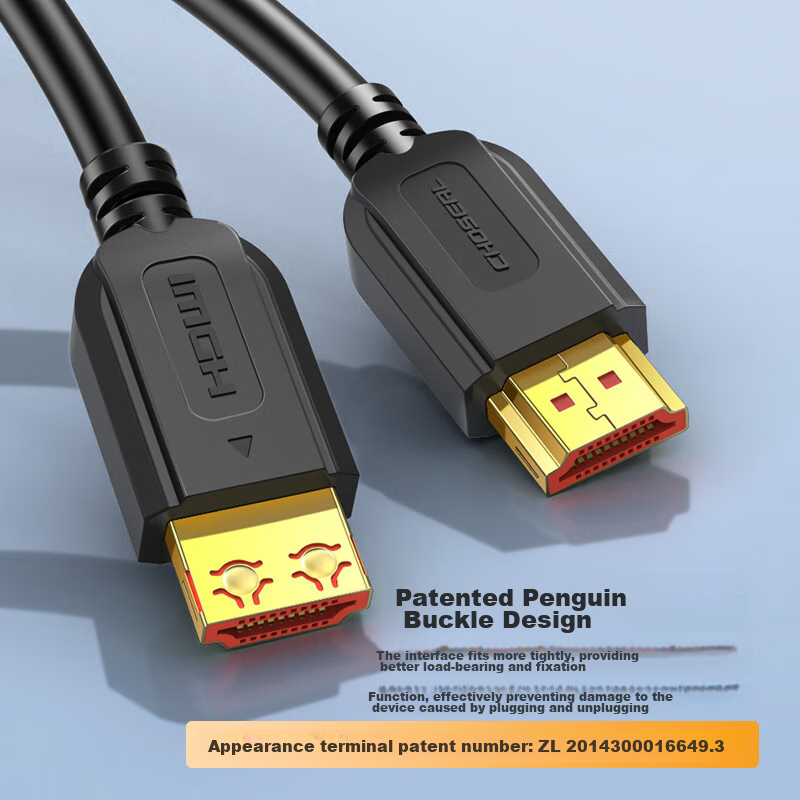

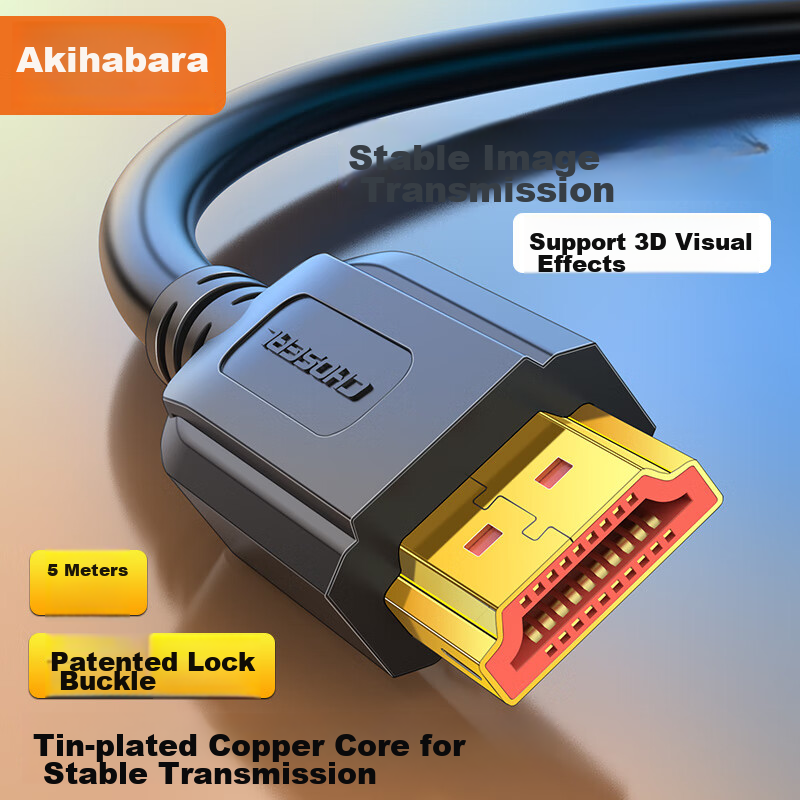

**Connector:** Gold-plated Penguin Clip
**Color:** Black
**Conductor:** 32AWG Tin-plated Copper

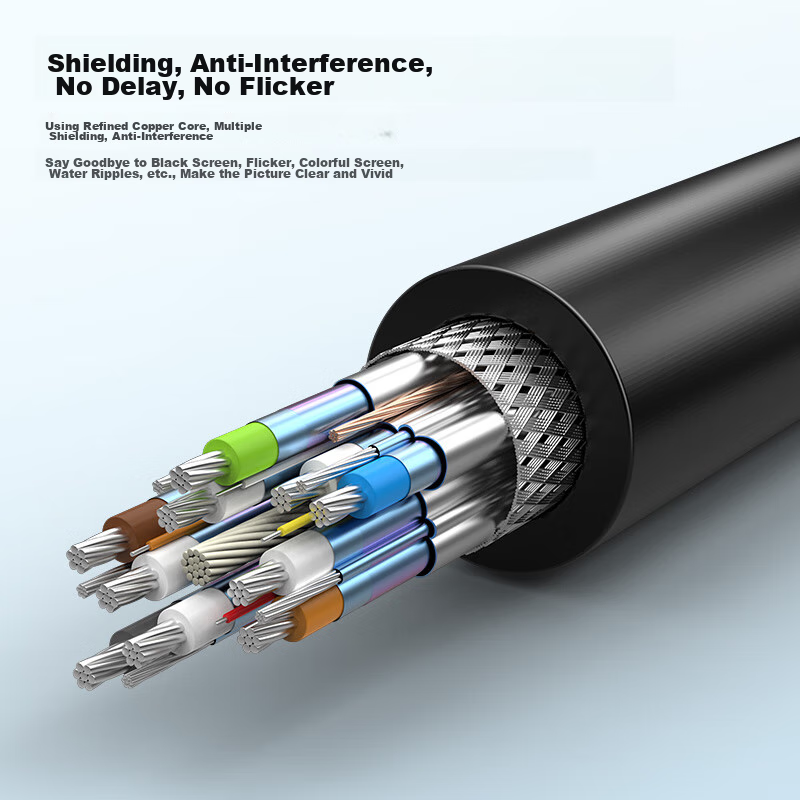

**Shielding:** Braided Net + Aluminum Foil

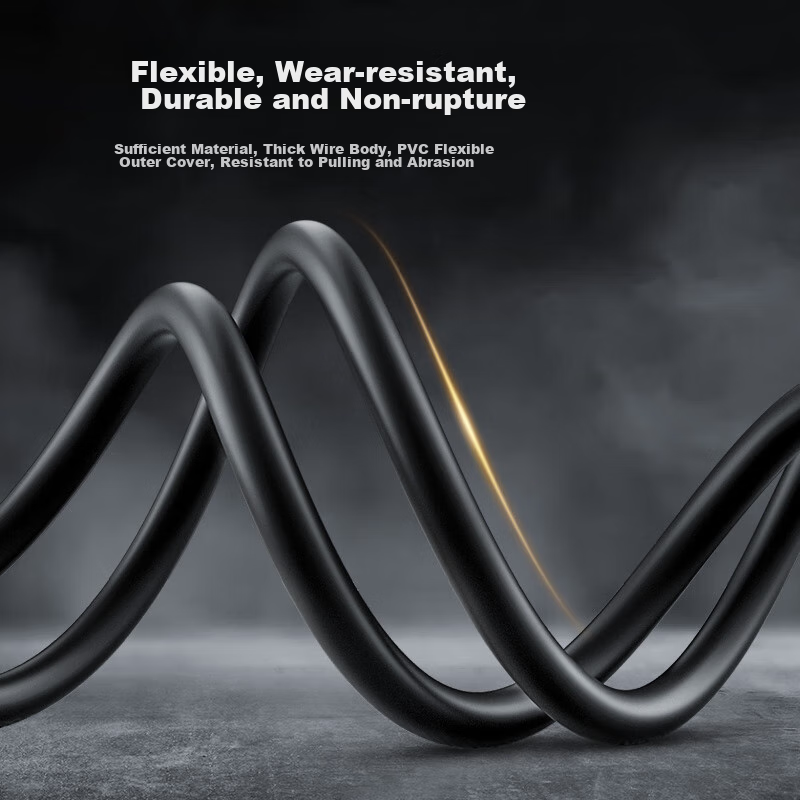

**Outer Cover:** PVC

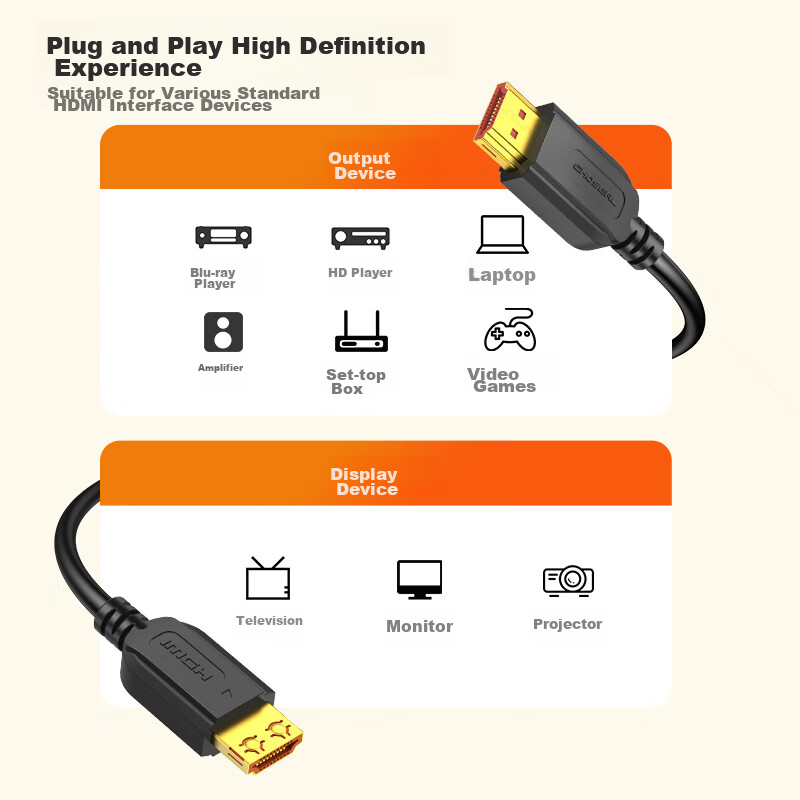

**Compatible Devices:** TV, Set-top Box, Computer, Projector, etc.
**Dimensions:** F14mm-20mm, 12mml, Male-Male, HSUI, 46mm
**Note:** The above dimensions are measured manually and may have slight errors.
**Specifications by Length:**
1. 1m-3m: 6.3mm diameter, 4K*2K resolution, 60Hz refresh rate, 32AWG Tin-plated Copper
2. 5m: 6.3mm diameter, 4K*2K resolution, 60Hz refresh rate, 32AWG Tin-plated Copper
3. 8m-10m: 8.5mm diameter, 4K*2K resolution, 60Hz refresh rate, 26AWG Refined Copper
4. 15m: 8.5mm diameter, 4K*2K resolution, 60Hz refresh rate, 26AWG Refined Copper
5. 20-25m: 8.5mm diameter, 1080P resolution, 60Hz refresh rate, 26AWG Refined Copper
**Additional Information:**
Standard HDMI interfaces on both ends
Please check device interfaces before purchasing to avoid errors
Mini HDMI interfaces, Micro HDMI interfaces: 14x4.5mm, 10.5x2.5mm, 6x2.3mm
Before wiring, test the devices to ensure signal integrity
Use caution when laying cables to prevent damage to the internal wires
For longer cables, ensure the conduit diameter is larger than the magnetic ring diameter
Maintain a bend radius greater than 90 degrees to prevent damage to the cable cores
**Note:** The specifications remain the same for both new and old products, with random shipments of either type being genuine CHOSEAL products.
