**Product Specifications:**
**Brand:** netcore
**Model:** S16G

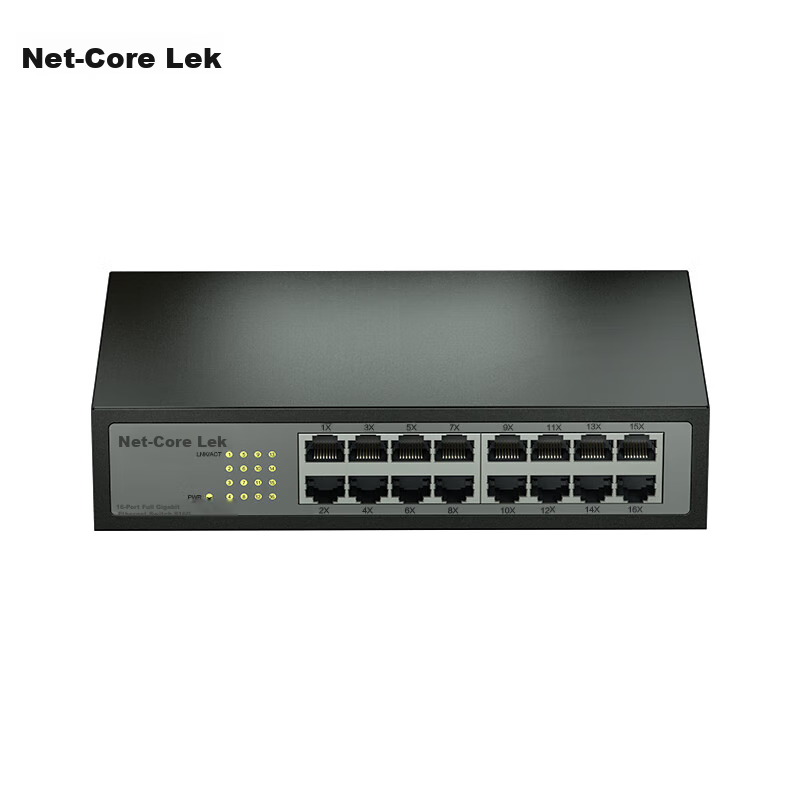

**Description:** 16-port Gigabit Ethernet Switch
**Features:**
- High-speed data transmission
- Metal casing with lightning protection for Gigabit ports
- 16 Gigabit ports, plug and play
- Advanced lightning protection technology
- Desktop or rack-mountable design
- Gigabit forwarding for high-speed data transfer
- Store-and-forward mechanism with high-capacity internal buffer
- High-quality 8-core shielded ports for stable and efficient data transmission
- 365-day stable operation without packet loss
- Reliable network connectivity
**Lightning Protection:**
- Built-in advanced lightning protection technology
- 4KV lightning protection for effective surge protection
**Ease of Use:**

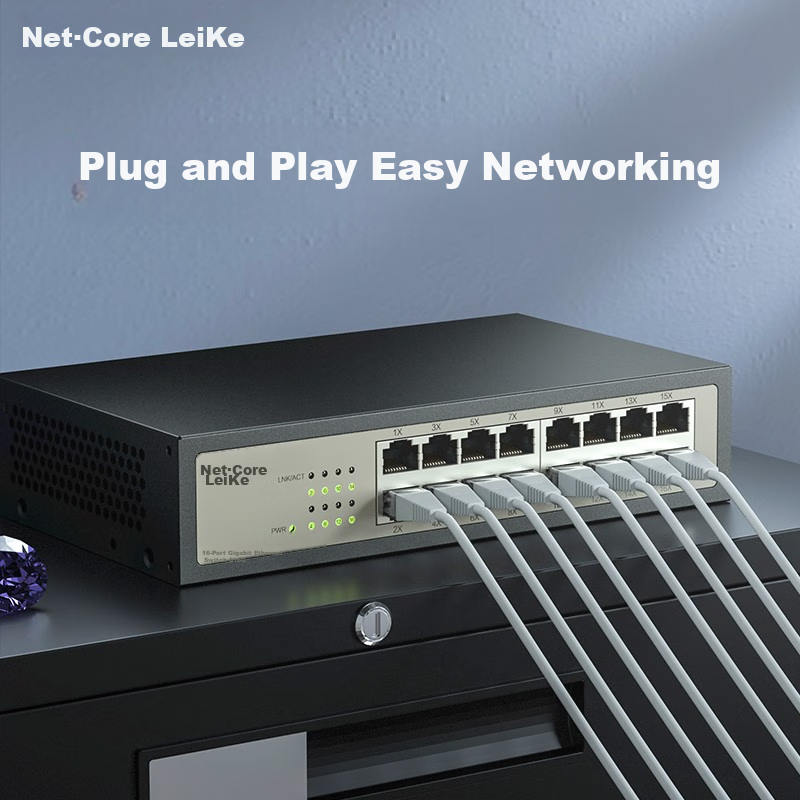

- Plug and play setup for easy networking
- 16 auto-negotiation 10/100/1000M LAN ports
- Automatic MAC address learning and updating
- Full/half duplex auto negotiation
**Installation:**

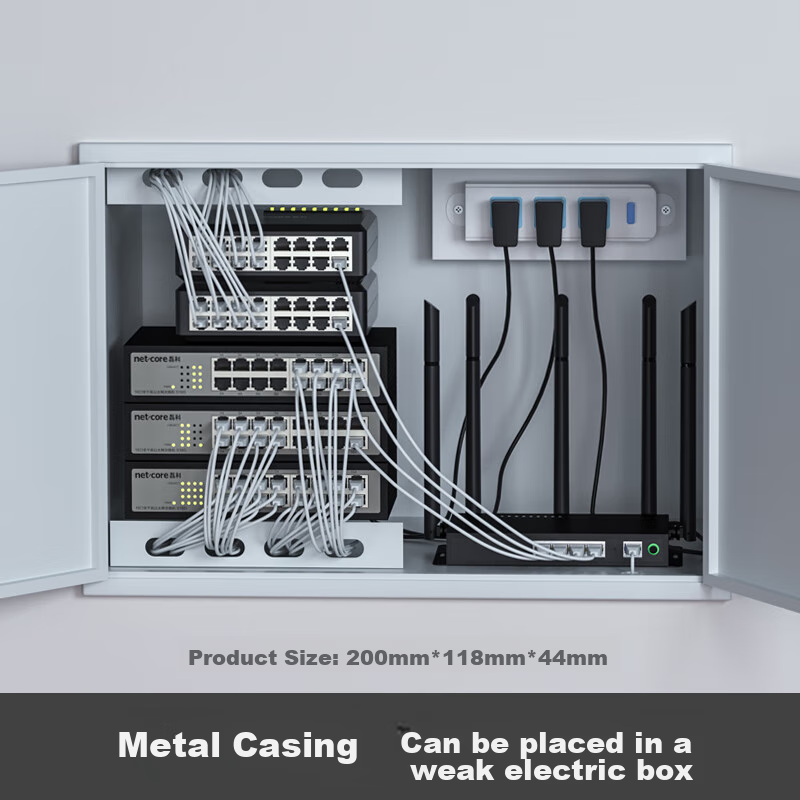

- Suitable for desktop or rack-mount installations

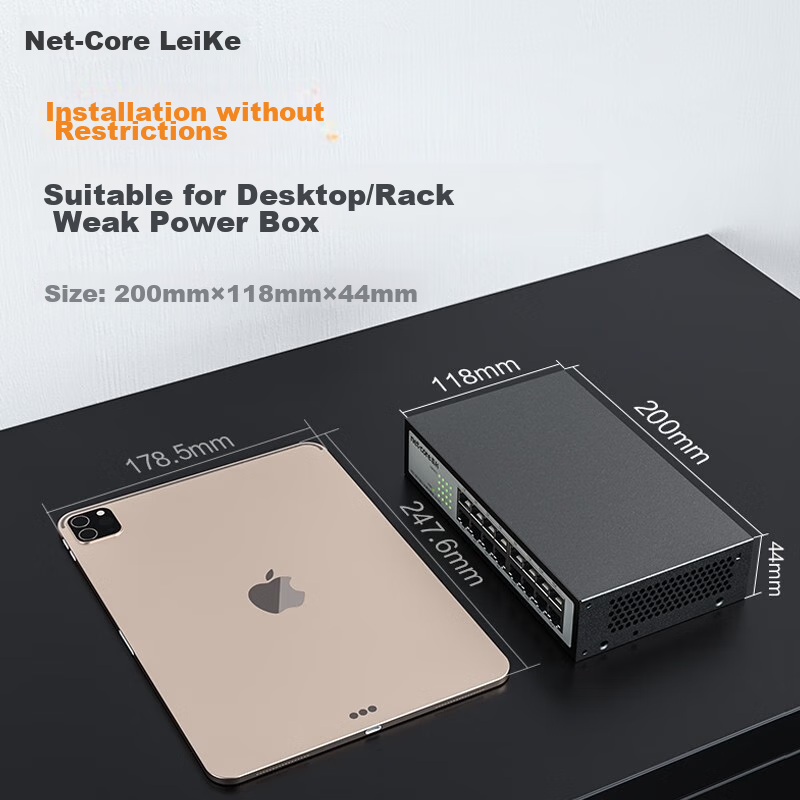

- Dimensions: 200mm x 118mm x 44mm
- Front LED indicators for easy management
**Construction:**
- Metal body for quick heat dissipation
- Honeycomb-style heat dissipation holes on both sides
**Applications:**
- Wide range of applications including school dormitories, villages, homes, small businesses, etc.
- Suitable for connecting wired IPCs, computers, printers, network cameras, etc.
**Scenarios:**
1. Home and villa networking solution
2. School dormitories networking solution
3. Office wired network expansion solution
**Product Specifications:**
- **Standard Protocols:** IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x
- **Ports:** 16 x 10/100/1000M auto-negotiation LAN ports
- **ROM:** 4M
- **Forwarding Rate:** 10/100/1000Mbps
- **Switching Method:** Store-and-forward
- **Backplane Bandwidth:** 32Gbps
- **MAC Address Table:** 8K
- **LED Indicators:** PWR, 16 LAN LINK
- **Dimensions:** 200mm (L) x 118mm (W) x 44mm (H)
- **Operating Environment:**
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 70°C
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
- **Power Supply:** 12V/1A
- **Weight:** 700g
