**Product Specifications:**
**Brand:** Ruijie
**Quality:** Uncompromising quality, worry-free performance, providing stable happiness
**Compliance:** Strictly compliant with GB4943.1-2022 standards

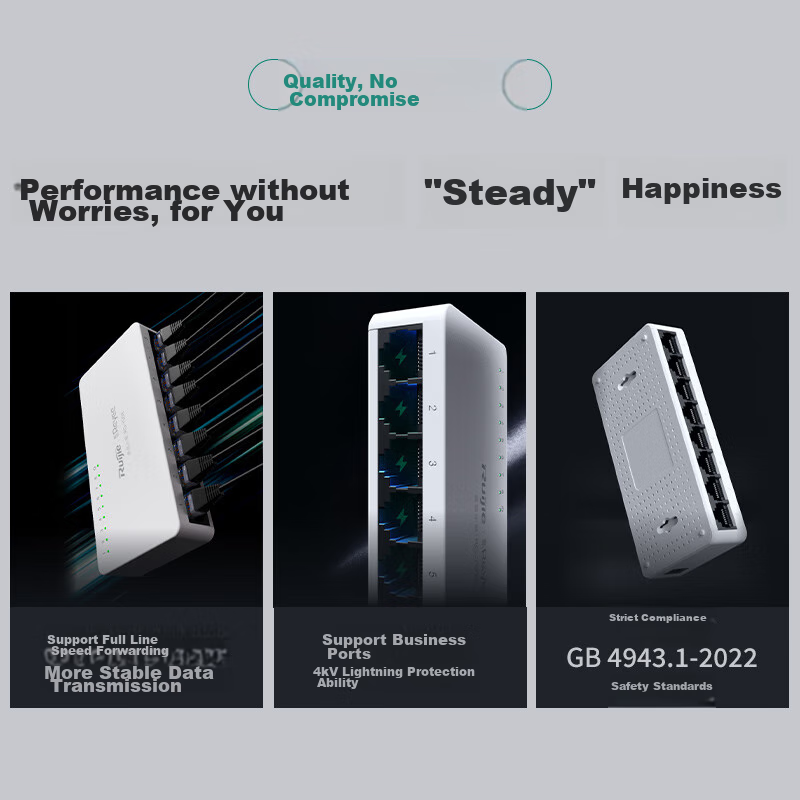

**Data Transmission:** More stable data transmission, with a lightning protection capability of 4kV
**Lightning Protection Design:** High-spec lightning protection design to enhance network stability
**Plug and Play:** Zero configuration, plug in and use immediately
**Adaptive Ethernet Interface:** No configuration required, plug and play
**Port Expansion:** Easily expand network ports for various scenarios such as home, office, surveillance, etc.
**Compact Design:** Lightweight and compact design, suitable for various environments
**Product Model:** RG-YS05
**Technical Parameters:**
- **Fixed Interfaces:** 5 x 10/100Mbps adaptive Ethernet interfaces
- **Switching Capacity:** 1Gbps
- **Packet Forwarding Rate:** 0.75Mpps
- **MAC Table Entries:** 2K
- **Layer Type:** Unmanaged switch
- **Static MAC Address:** Not supported
- **MAC Address Filtering:** Not supported
- **Dimensions:** 85mm x 52mm x 23.5mm
- **System Indicator Lights:** Supported
- **Power Switch:** Not supported
- **Reset Button:** Not supported
- **Weight:** 50g (excluding packaging)
- **Installation:** Desktop or wall mount
- **Management Port:** None
- **Hot-swappable Cables:** Supported
**Power:**
- **Power Supply:** Adapter powered
- **Maximum Power Consumption:** ≤1.5W
- **Adapter AC Input:** Rated voltage range: 200V-240V~, Maximum voltage range: 180V-264V~, Frequency: 50Hz/60Hz
- **Adapter DC Output:** Rated voltage: 5V, Rated current: 1A
- **Energy Efficiency (EEE):** Not supported
**Operating Environment:**
- **Operating Temperature:** 0°C~40°C
- **Storage Temperature:** -40°C~70°C
- **Operating Humidity:** 10%~90% non-condensing
- **Storage Humidity:** 10%~90% non-condensing
**Lightning Protection:**
- **Port:** Common mode ±4kV, Differential mode ±2kV
- **Power:** Common mode ±2kV
**Certifications:** Network access certificate, safety regulations GB4943.1-2022
