**Product Specifications:**
**Brand:**
**Rating:** 4 points to 3 points conversion
**Water Purifier Three-way Connector:** Quick-connect interface for easy and fast installation
**Four Major Selling Points:**
1. GE precision manufacturing for quality assurance
2. Careful selection of raw materials and strict craftsmanship
3. Strong sealing for durability
**3-point Specifications:**
- **Product Applicability:** Suitable for various brands of water purifiers, including under-counter classic models, under-counter computer-controlled models, commercial pure water machines, box-type computer-controlled models, rear-opening computer-controlled models, and ultrafiltration water purifiers
- **Three-way Integrated Water Inlet:** Leak-proof, high precision, and high airtightness

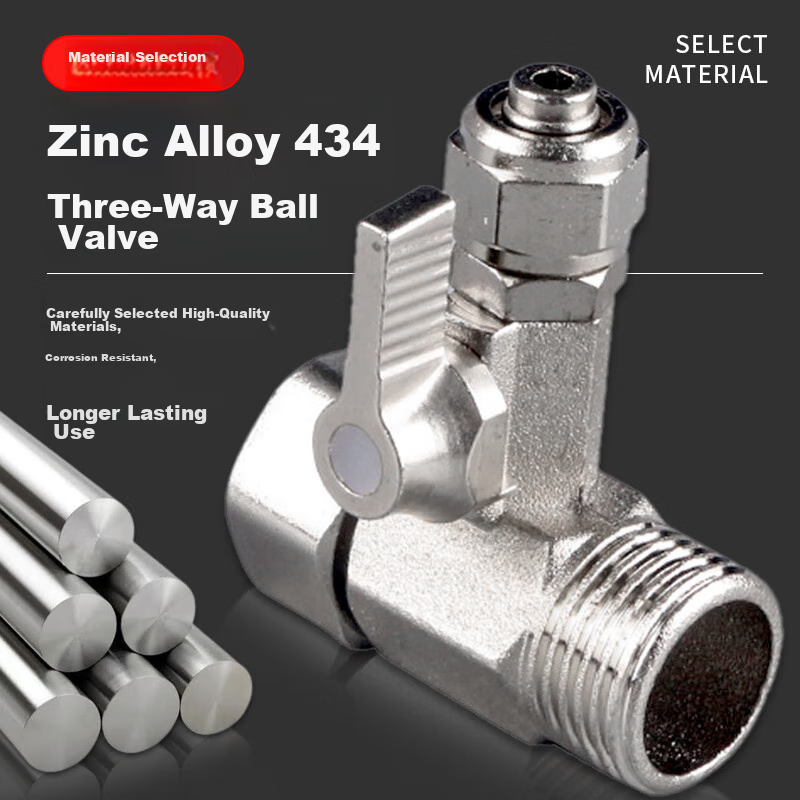

- **Material:** Zinc alloy 434, corrosion-resistant for longer use

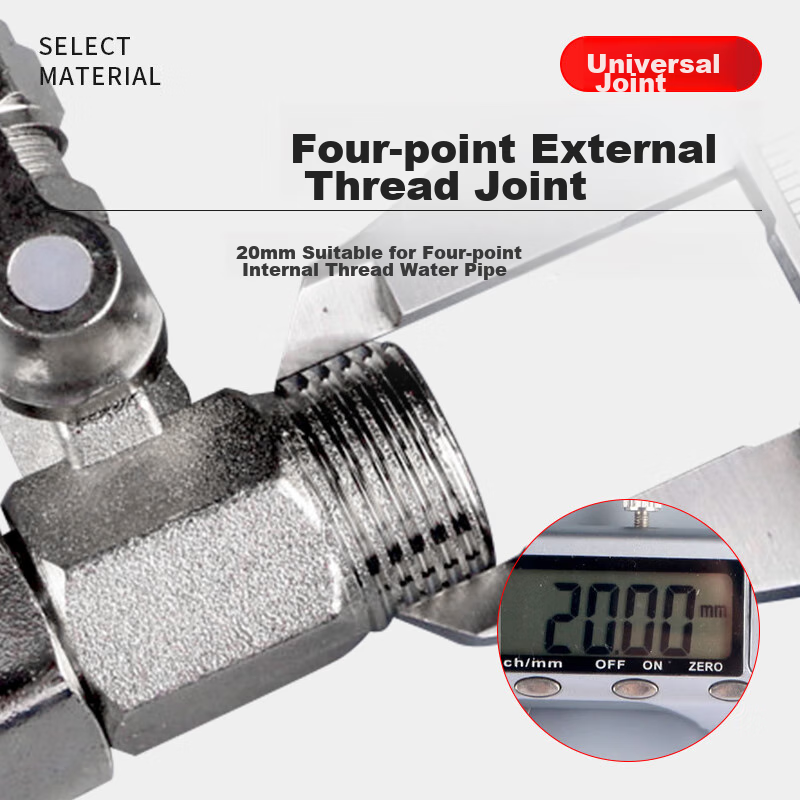

- **Universal Connector:** 4-point external thread connector, compatible with 20mm internal thread water pipes

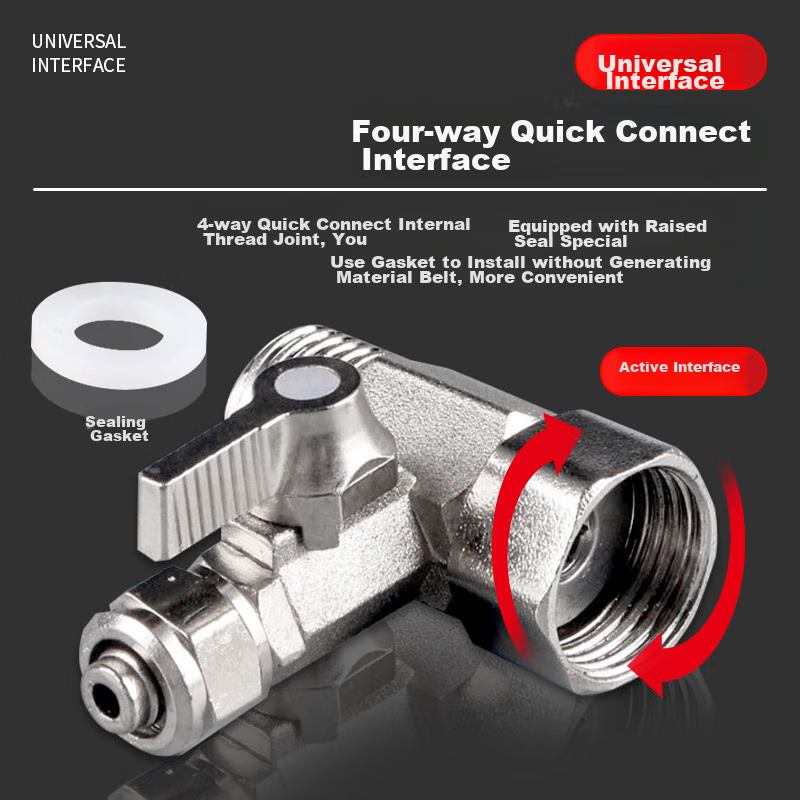

- **Quick-connect Interface:** Convenient installation with protruding sealing gasket

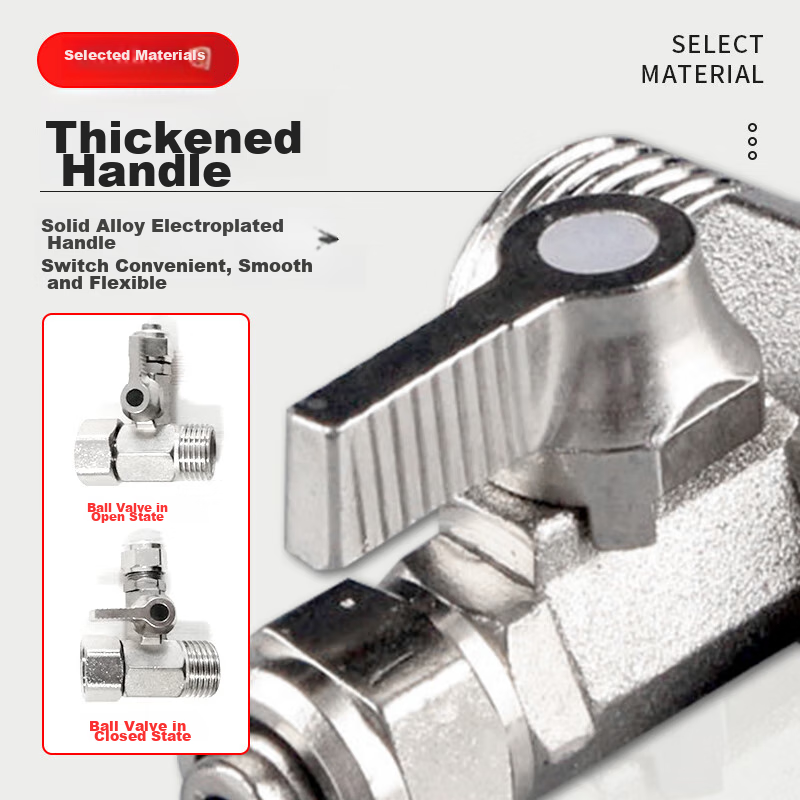

- **Thickened Handle:** Solid alloy electroplated handle for smooth operation

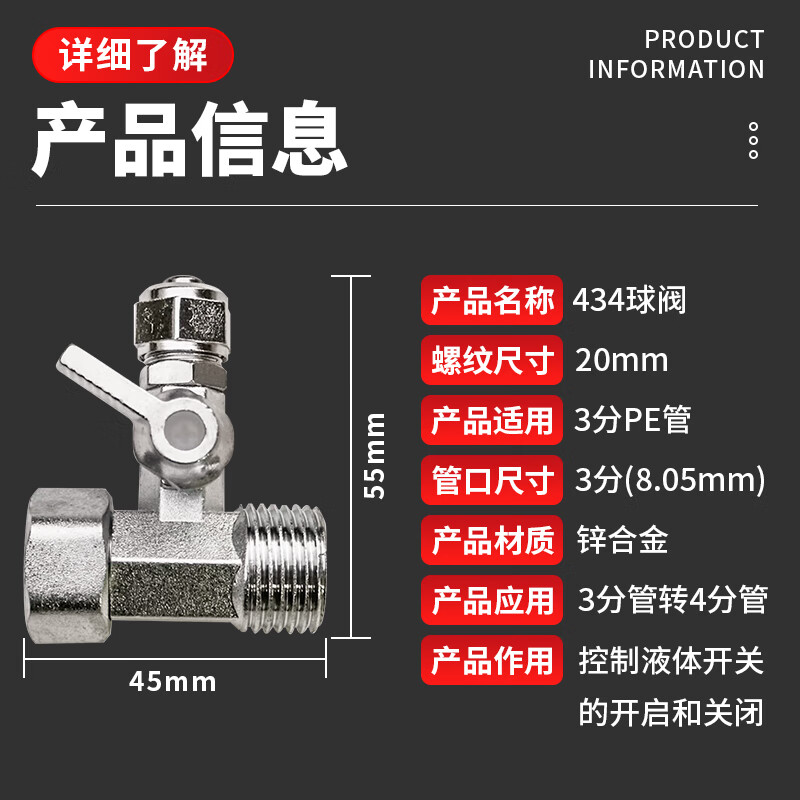

**Product Information:**
- **Product Name:** 434 Ball Valve
- **Pipe Size:** 3 points (8.05mm)
- **Thread Size:** 20mm
- **Material:** Zinc alloy
- **Application:** Suitable for 3-point PE pipes, converting 3-point pipes to 4-point pipes
- **Function:** Controls the opening and closing of liquid flow

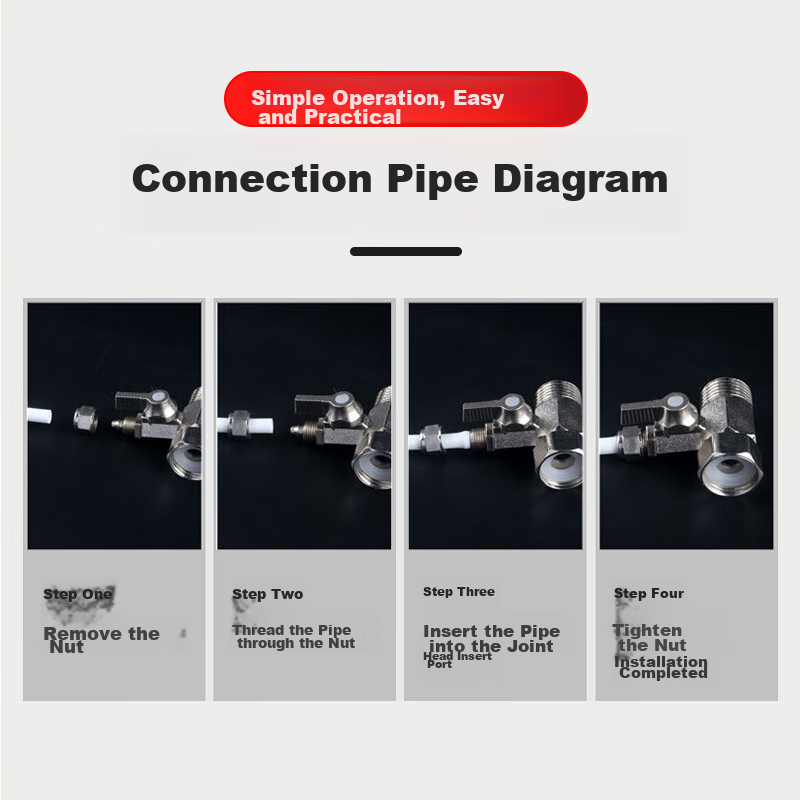

**Installation Steps:**
1. Remove the nut
2. Pass the pipe through the nut
3. Insert the pipe into the connector
4. Screw on the nut
**Convenient Installation:** Three-way valve installation steps for various water purifier water line installations
1. Remove the original hose
2. Install the three-way inlet on the angle valve
3. Connect the hose and PE water pipe
4. Connect the PE pipe to the water inlet of the water purifier
(Note: Product specifications are subject to manual measurement errors and slight color differences may occur due to photography or different product batches, but do not affect product functionality. Please refer to the actual product for accuracy.)
