**Specifications:**
**Brand:** Tenda
**Model:** TEF1005D

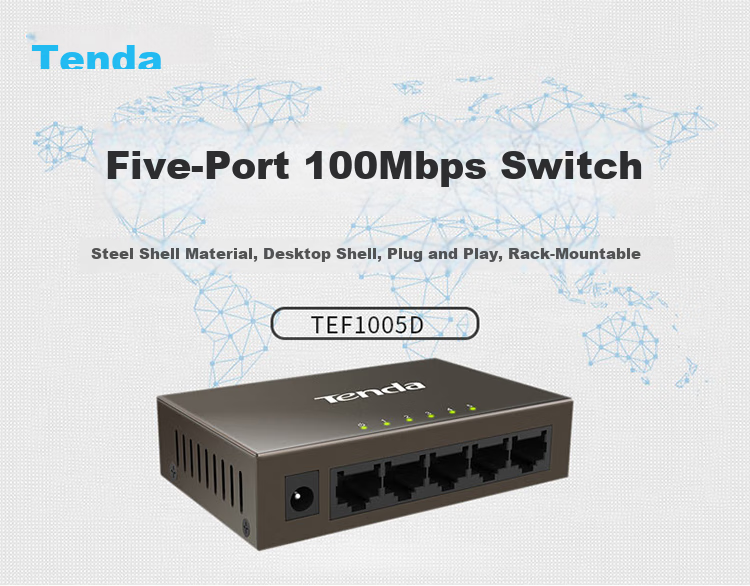

**Type:** 5-port 100Mbps Ethernet Switch
**Material:** Steel shell
**Features:** Desktop design, plug and play, rack-mountable
**Core Advantages:** Steel shell for better heat dissipation, lightning protection, 3C certification, anti-interference
**Port Lightning Protection:** Integrated professional lightning protection circuit with up to 6KV protection
**Size:** Miniature design with wall-mount support, dimensions 100mm x 64mm x 25mm
**Stability:** 7x24 stable operation with all 5 10/100M ports supporting line-speed forwarding

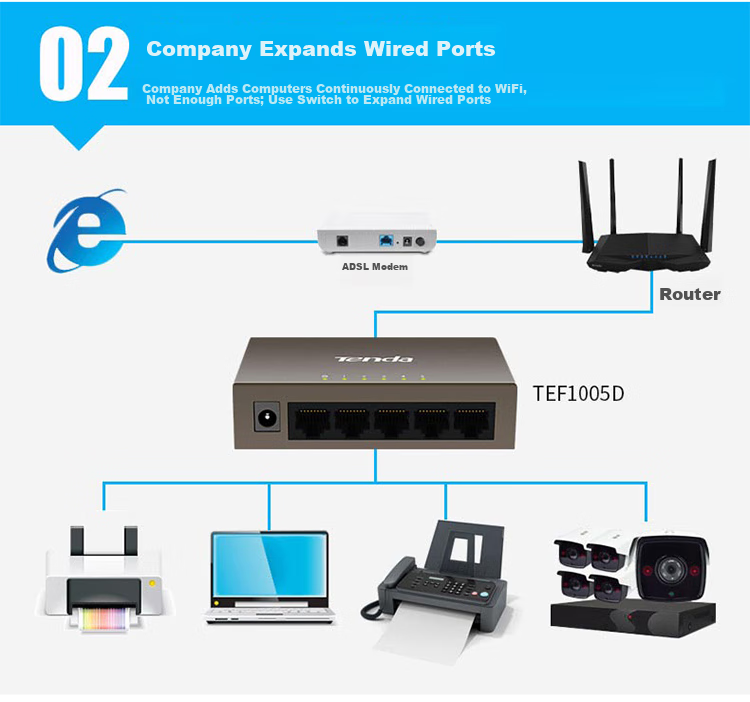

**Applications:** Suitable for dormitories, homes, surveillance, small offices

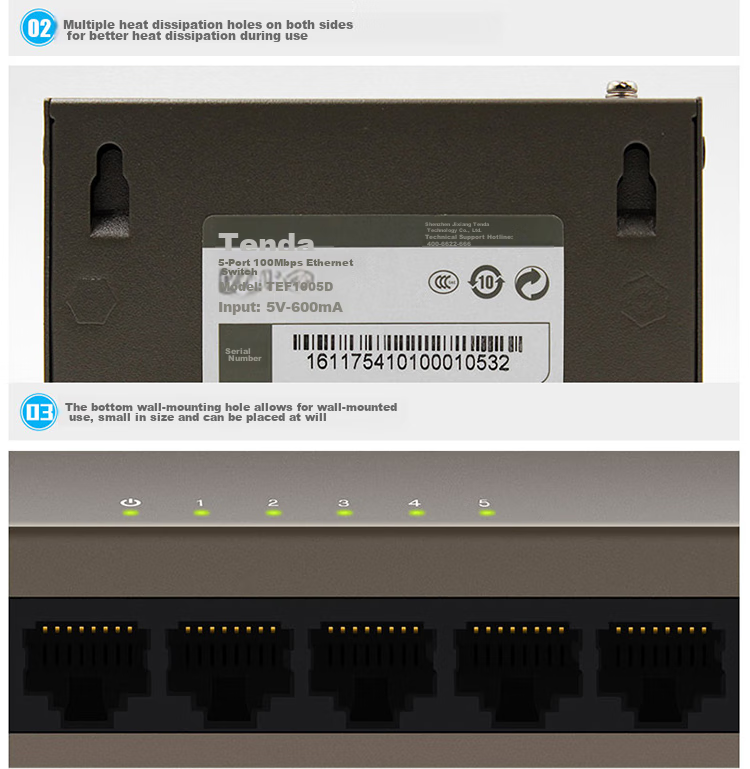

**Heat Dissipation:** Multiple heat dissipation holes on both sides for better cooling
**Manufacturer:** Shenzhen Tenda Technology Co., Ltd.
**Technical Support:** 400-6622-666
**Power Input:** 5V-600mA
**Serial Number:** 161175410100010532
**Interface:** 5 10/100M adaptive RJ45 ports
**Standards:** IEEE802.3, IEEE802.3u, IEEE802.3x
**Data Transfer Rate:** Ethernet: 10Mbps (half duplex) / 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex) / 200Mbps (full duplex)
**Network Media:** Recommended Category 5 or above UTP/STP (≤100m)
**Port Number:** 5 10/100Mbps adaptive RJ45 ports
**Indicators:** 1 Power LED, 5 Link/Act LEDs
**Forwarding Mechanism:** Store-and-forward
**MAC Address Table:** 1K
**MAC Address Learning:** Automatic learning/aging
**Data Packet Filtering:** 10BASE-T: 14881pps/port, 100BASE-TX: 148810pps/port
**Backplane Bandwidth:** 1.0Gbps
**Physical and Environmental Characteristics:**
- **Power Input:** 220VAC, 50Hz
- **Power Output:** 5VDC, 0.6A
- **Operating Temperature:** -10°C to 45°C, Storage Temperature: -40°C to 70°C
- **Operating Humidity:** 10% to 90% RH (non-condensing), Storage Humidity: 5% to 90% RH (non-condensing)
**Additional Features:** Plug and play, auto MDI/MDIX, wall-mountable, port lightning protection
**Package Contents:** Switch, power adapter, quick installation guide
**More Applications:** Suitable for various networks in homes, offices, and surveillance systems
(Note: All details are sourced from Tenda laboratory.)
