**Product Specifications:**
**Brand:** HIKVISION
**Model:** DS-3E0109P-E/M
**Interface:** 9 x 10/100Mbps RJ45 ports
**Network Standards:** 802.3, 802.3u, 802.3ab, 802.3af, 802.3at
**Processing Type:** Store and forward
**MAC Address Table:** 4K, automatic learning/aging
**Switching Capacity:** 1.8Gbps
**Packet Forwarding Rate:** 2.3Mpps
**Internal Buffer:** 1.25Mbits
**Backplane Bandwidth:** 1.8Gbps
**Housing:** Metal material, fanless
**Dimensions:** 177.5mm (L) x 104mm (W) x 26mm (H)
**Installation:** Desktop, wall-mount
**Operating Temperature:** 0~40°C
**Storage Temperature:** -40~70°C
**Relative Humidity:** 5~95% (non-condensing)
**Input Power:** DC 51V
**PoE Power Supply Core:** Supports 8-core power supply, using 1236 and 4578 line sequences of the network cable for power supply simultaneously
**PoE Output Power:** 58W
**Power Consumption:** <63W
**Network Extension Mode:** Supported, through EXTEND
**ESD Protection:** Contact discharge: ±7KV, air discharge: +9KV
**Surge Protection:** Power port: line-ground +4KV, line-line 2KV, network port: line-ground ±4KV
**LED Indicators:** Each 100Mbps port has 1 Link/Act LED, each device has 1 Power LED
**Features:**
- High-speed and stable data exchange
- 8-core power supply technology for reduced power line losses
- Adaptive network port with red port protection

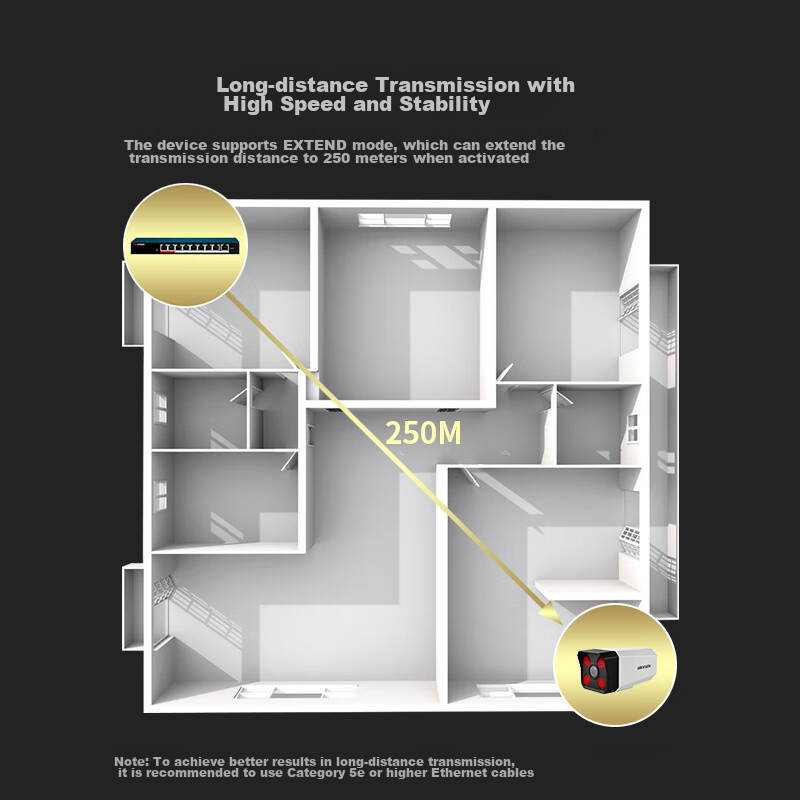

- Supports long-distance transmission up to 250 meters in EXTEND mode

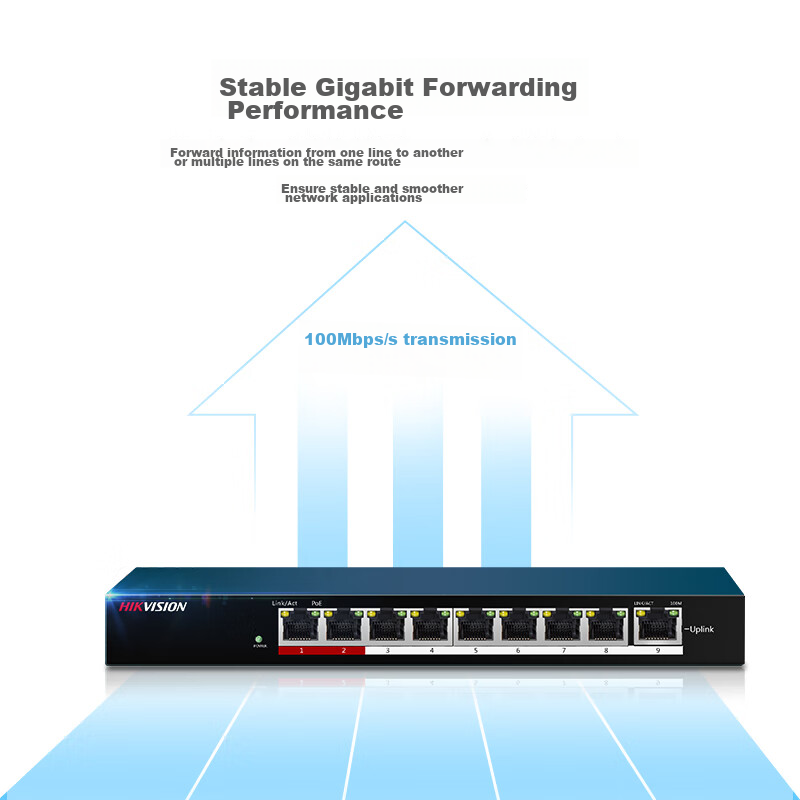

- Stable 100Mbps forwarding performance
- Wide compatibility with various network devices
- Wide temperature metal housing for durability in harsh environments
- Easy installation with wall-mount and desktop options
**Applications:**
- Suitable for small and medium-sized enterprises, hotels, guesthouses, and multi-room locations.
