**Product Specifications:**
**Brand:** keepLiNK
**Model:** KP-9000-208GP
**Features:** AI Smart, PoE Switch
**Ports:** 8 x 1000Mbps PoE RJ45 Ports + 2 x 1000Mbps Uplink RJ45 Ports
**Backplane Bandwidth:** 20G
**MAC Address Table:** 2K
**Power Supply:** AC Input 100-240V, 100/120W Power Supply
**Network Media & Transmission Distance:**
- 1000Base-T: Cat5e or above UTP/STP (≤100m)
- 100Base-TX: Cat5 or above UTP/STP (≤100m)
- 10Base-TX: Cat5e or above UTP/STP (≤250m)
**Indicators:** Power Indicator (PWR), AI Mode Indicator (Ai), Port Lights (Link/ACT)

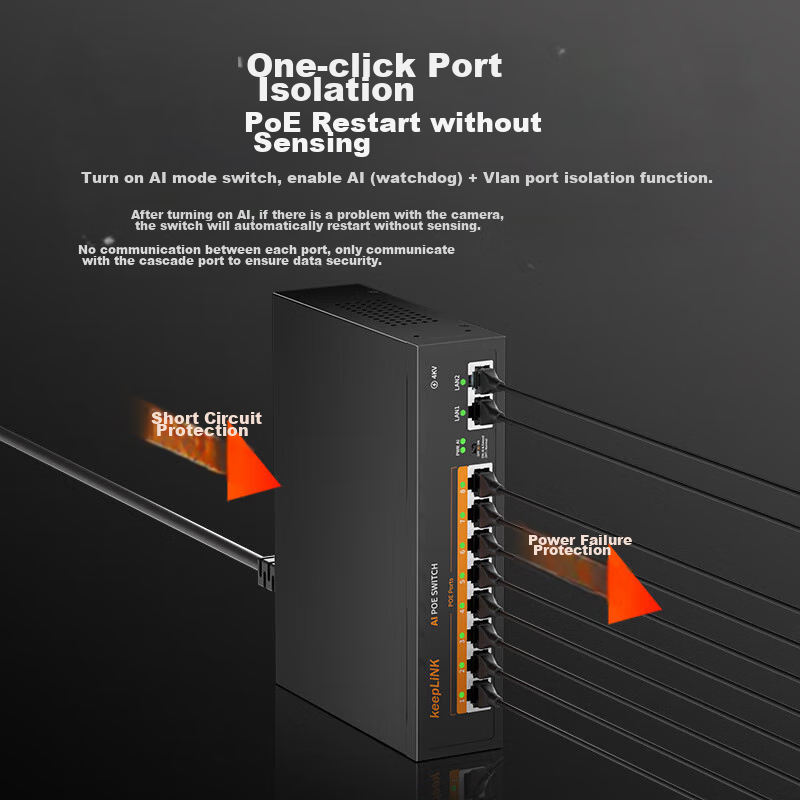

**Switching Mode:** AI Mode (ON), Default Mode (OFF)
**POE Performance:**
- IEEE802.3af Support
- IEEE802.3at Support
- Peak Power per Port: 30W
- Overcurrent Protection, Overvoltage Protection, Short Circuit Protection
**Environmental Requirements:**
- Operating Temperature: 0°C~40°C
- Storage Temperature: -40°C~70°C
- Operating Humidity: 10%~90%RH non-condensing
- Storage Humidity: 5%~90%RH non-condensing
**Dimensions & Weight:**
- Unit: 190mm*140mm*43mm
- Whole Machine: 210mm*195mm*65mm
- Packaging: 415mm*345mm*440mm (20PCS/box)
**Other Features:**
- IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol Standards
- IEEE802.3af/at PD Compatibility
- Storage and Forwarding, MAC Learning and Aging
- IEEE802.3X Flow Control, Backpressure
- AI+Smart Ultra Long Range Mode
- Data Transfer Rates: 10Mbps Half Duplex, 20Mbps Full Duplex, 100Mbps Half Duplex, 200Mbps Full Duplex, 2000Mbps Full Duplex
**Package & Storage Requirements:**
- Packaging: High-Quality Cardboard Box
- Storage Conditions: Clean, Ventilated, Free from Corrosive Gases, Away from Heat Sources
- Storage Period: Recommended to recheck after 2 years
**Standard POE vs. Non-Standard POE:**
- Standard POE requires Handshake Protocol (IEEE802.3af/at) for power supply
- Non-Standard POE lacks Handshake Protocol and may cause damage to devices
**Safety Comparison:**
- Standard POE has detection system for protection
- Non-Standard POE lacks intelligence and may supply power regardless of device compatibility
**Price Difference:**
- Non-Standard POE switches are generally cheaper due to simpler construction and lack of advanced technology
For any inquiries or further details, please contact customer service.
