**Product Specifications:**
**Brand:** HIKVISION
**Model:** DS-1LN5E-E/E-100
**Cable Type:** Surveillance Cat5e Ethernet Cable
**Length:** 100 meters
**Core Material:** Oxygen-free copper
**Outer Sheath Material:** PVC
**Insulation Material:** High-density polyethylene (HDPE)
**Color:** Gray
**Core Diameter:** 0.45±0.05mm
**Sheath Diameter:** 4.6±0.4mm

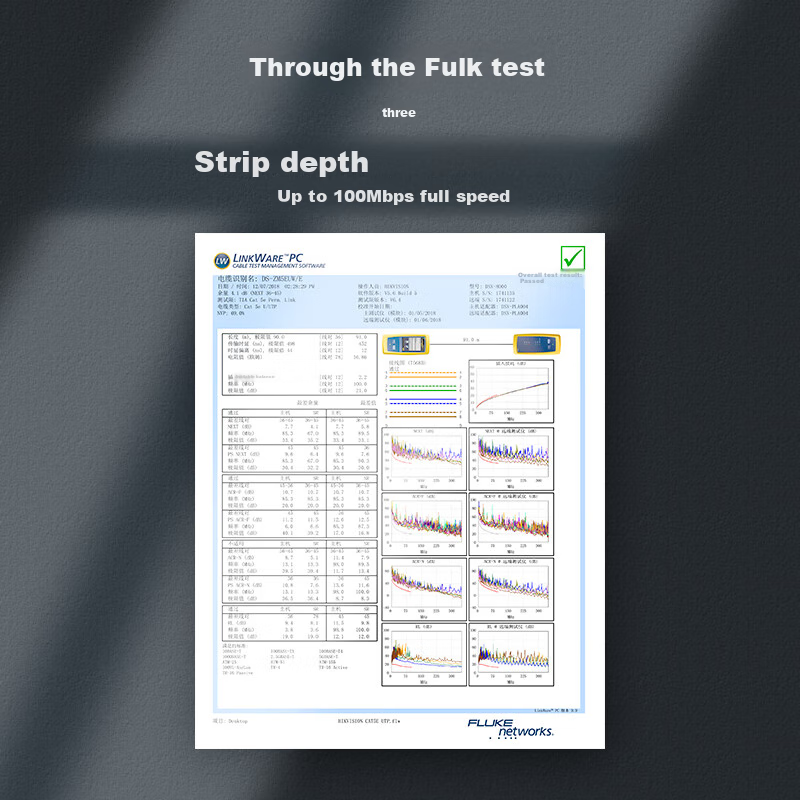

**Features:** Tear-resistant, PVC outer sheath, four twisted pairs, Fluke tested
**Application:** Suitable for routers, switches, ADSL, computers, etc.
**Transmission Speed:** Up to 100Mbps
**Compatibility:** TIA568B standard
**Installation:** Indoor use, recommended bending radius greater than 5 times the cable diameter
**Pulling Force:** Short-term <110N, long-term <20N
**Temperature Range:** Installation 0~40°C, Usage -10~60°C
**Certifications:** Fluke tested, Cat5e performance rated
**Additional Information:**
Four twisted pairs for reduced signal interference
Clear meter markings for easy cutting and installation
Flexible PVC for durability and longevity
Suitable for various network environments and applications
Easy-to-follow wiring instructions provided
Ideal for office, internet cafe, server room, entertainment venues, and home installations
*Note: All data is based on testing conducted by HIKVISION laboratories. Slight variations in physical appearance are within normal range.*
