**Product Specifications:**
**Brand:** EB-LINK
**Product Name:** PCIe to 2-port SATA 3.0 Array Card
**Model:** EB-SATAZL
**Manufacturer:** Shenzhen Wolf Light Technology Co., Ltd.
**Key Features:**
PCIe 2.0 x1 to 2-port SATA 6Gbps
Supports RAID 0/1 hybrid array for enhanced disk performance
High-speed data transfer, easy installation, and stable performance
Built-in intelligent chip ASM1061R for exceptional performance
Supports PCIe x1/x4/x8/x16 slots
Supports SATA 3.0 interface with 6.0Gbps transfer speed
RAID 0/1 hybrid array support for system boot drive
Compatible with PC, servers, and IPC storage devices
Supports RAID 1 array automatic rebuild

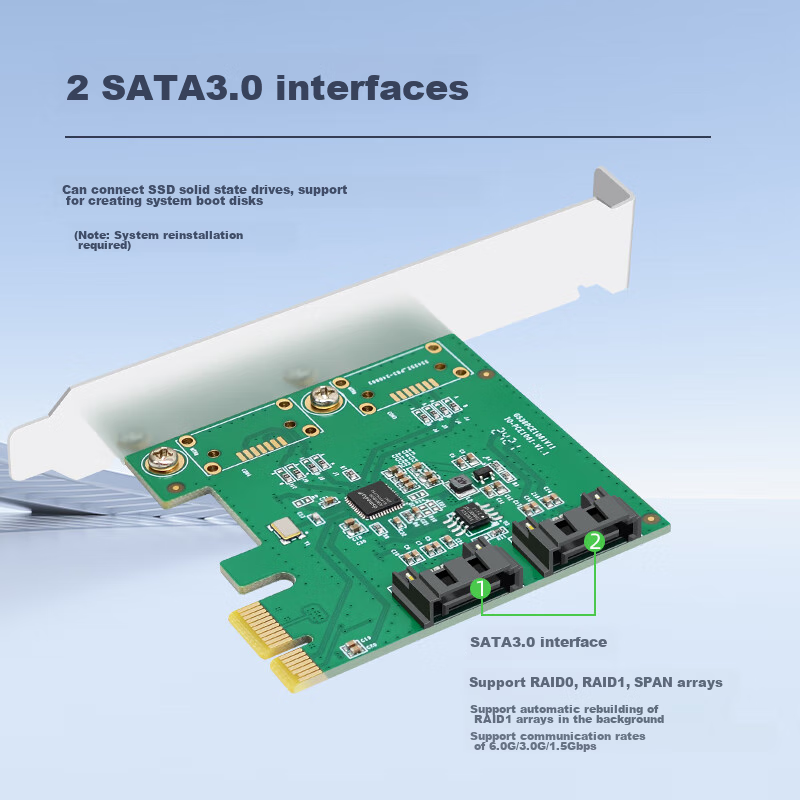

Includes 2 SATA 3.0 interfaces for SSDs
Supports RAID 0, RAID 1, and SPAN configurations

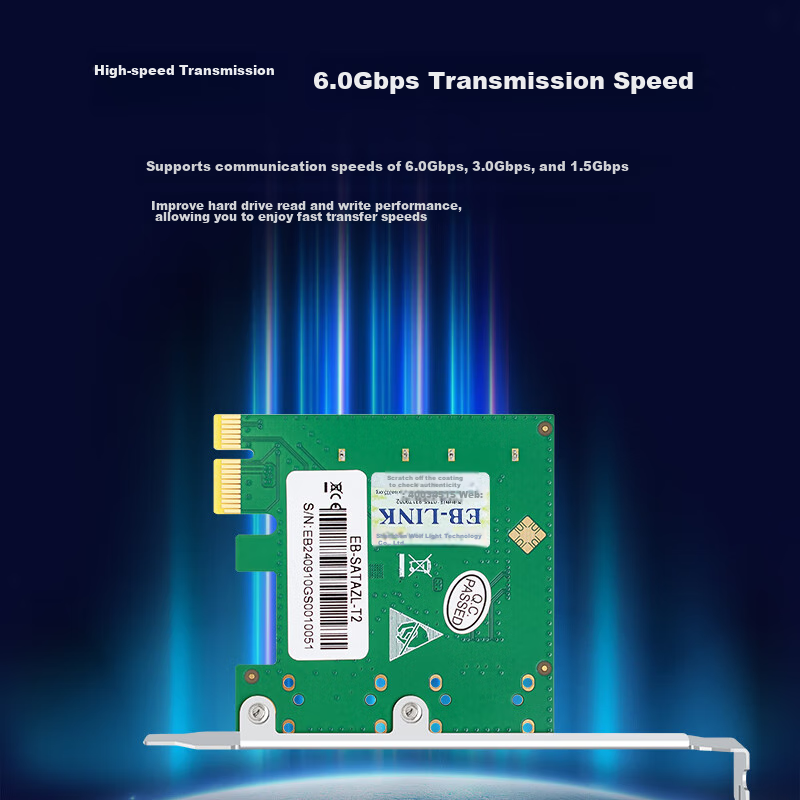

Supports communication rates of 6.0Gbps, 3.0Gbps, 1.5Gbps
Comes with long and short brackets for different case sizes

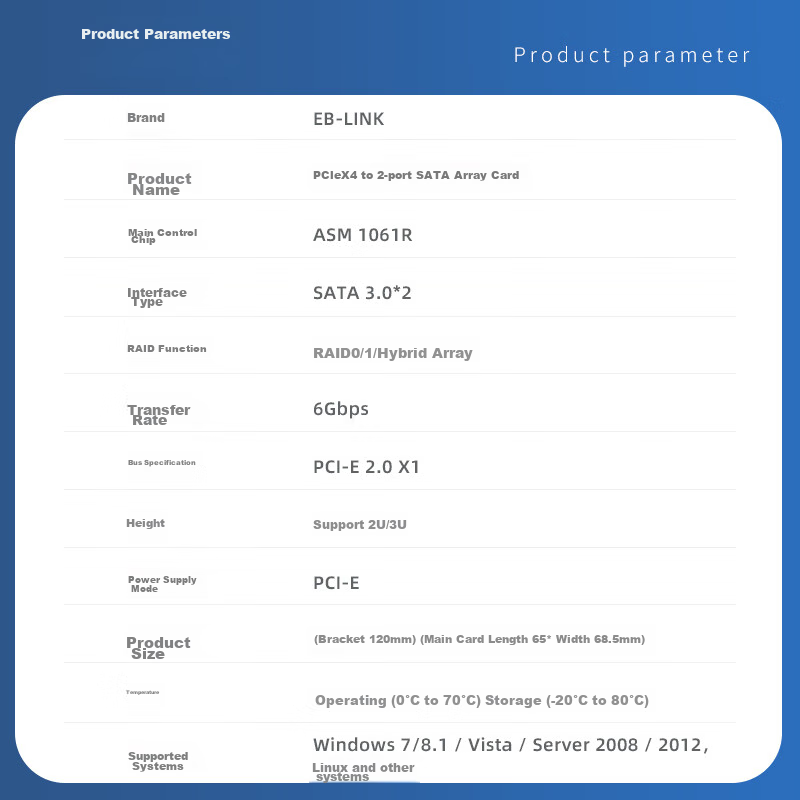

**Technical Specifications:**
Interface Type: SATA 3.0 x 2
RAID Function: RAID 0/1 Hybrid Array
Transfer Rate: 6Gbps
Bus Specification: PCI-E 2.0 x4
Height: Supports 2U/3U
Power Supply: PCI-E

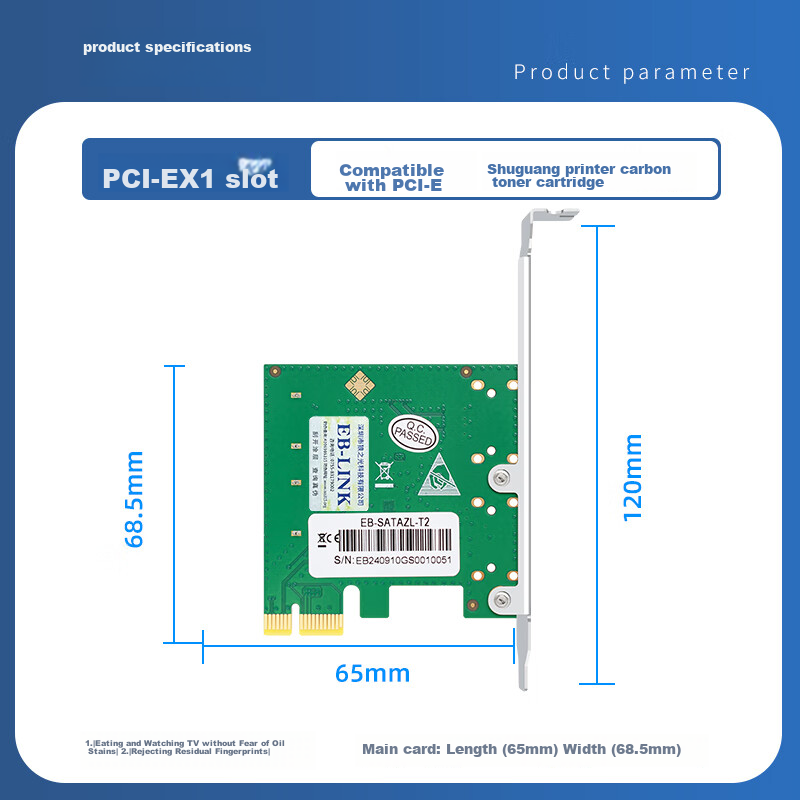

Product Dimensions: Main card 65mm x 68.5mm, Bracket 120mm
Temperature: Operating 0°C to 70°C, Storage -20°C to 80°C
Supported Systems: Windows 7/8.1/Vista/Server 2008/2012, Linux, etc.
Compliance: PCI Express 2.0 Revision, Serial ATA AHCI Specification ReV.1.3
Supports SATA 3.2 version, Serial ATA PHY 11/m/2I/2M/3I
Embedded hardware RAID engine, supports RAID 0, RAID 1, SPAN
Provides flexible RAID modes with GUI control
Supports SMART technology, automatic and high-performance offline rebuild
Includes main card, SATA data cable, 2U short bracket in packaging
**Package Contents:**
Main Card
SATA Data Cable
2U Short Bracket
