**Specifications:**
Brand: eKL
Product Name: HDMI Signal Extender
Model: HA
Input/Output Resolution: 3840x2160@60Hz (downward compatible)
Maximum Transmission Bandwidth: 600Mhz
Maximum Transmission Rate: 18Gbps
Output/Input TMDS Signal: 0.5-1.5Vp-p (TTL)
Input/Output DDC Signal: 5Vp-p (TTL)
HDMI Cable 24AWG: 3840x2160@30Hz input 15M/output 15M
HDMI Cable 24AWG: 3840x2160@60Hz input 15M/output 10M
Maximum Operating Current: 300MA
Power Adapter Specifications: AC Input (50/60HZ): 100V-240V, DC Output: 5V/1A
Operating Temperature: -0~40°C
Operating Humidity Range: 5~85%RH (non-condensing)
Dimensions: 65×42×20(mm)
Weight: 70g
**Product List:**
HA Host × 1
Power Adapter × 1
Warranty Card × 1
User Manual × 1
**Features:**
Supports 4K@60Hz high-definition visual effects
Stable transmission up to 30 meters using 24AWG HDMI cable
HDCP2.2, ESD, audio-video, high-definition bandwidth, and high-definition protocol protection up to 6KV
Supports HDMI2.0 and HDMI1.X specifications with a transmission rate of up to 18Gbps
Audio-video synchronous transmission with no delay and stable performance
Built-in chip for stronger signal and better image quality
Wide compatibility and stable power supply to prevent screen flickering, black screen, or signal loss
Metal housing for durability, excellent heat dissipation, and protection of internal components
Suitable for various applications such as home theater, conference video, security monitoring, and outdoor advertising

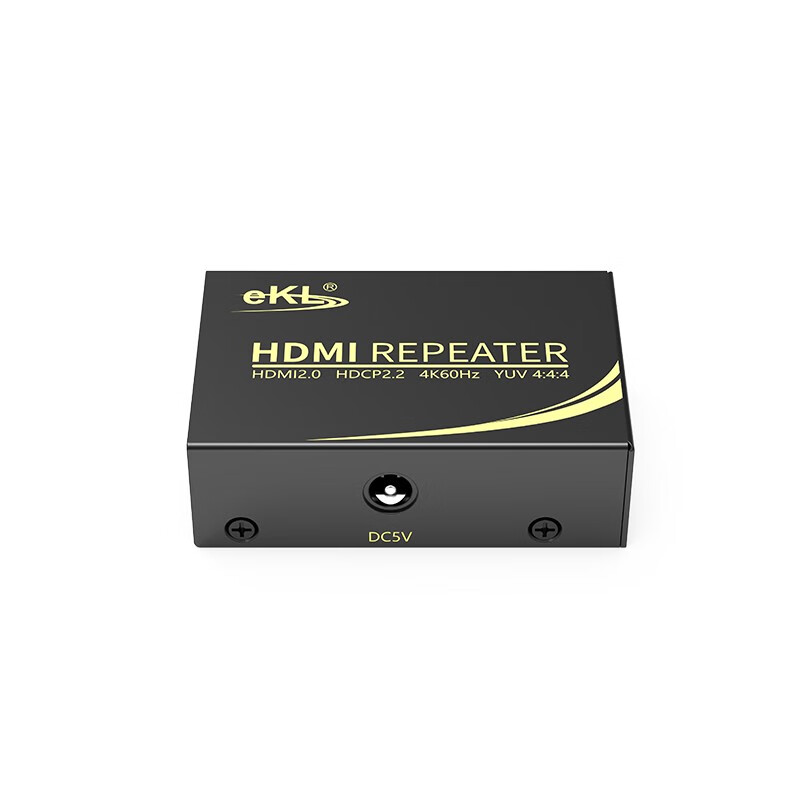

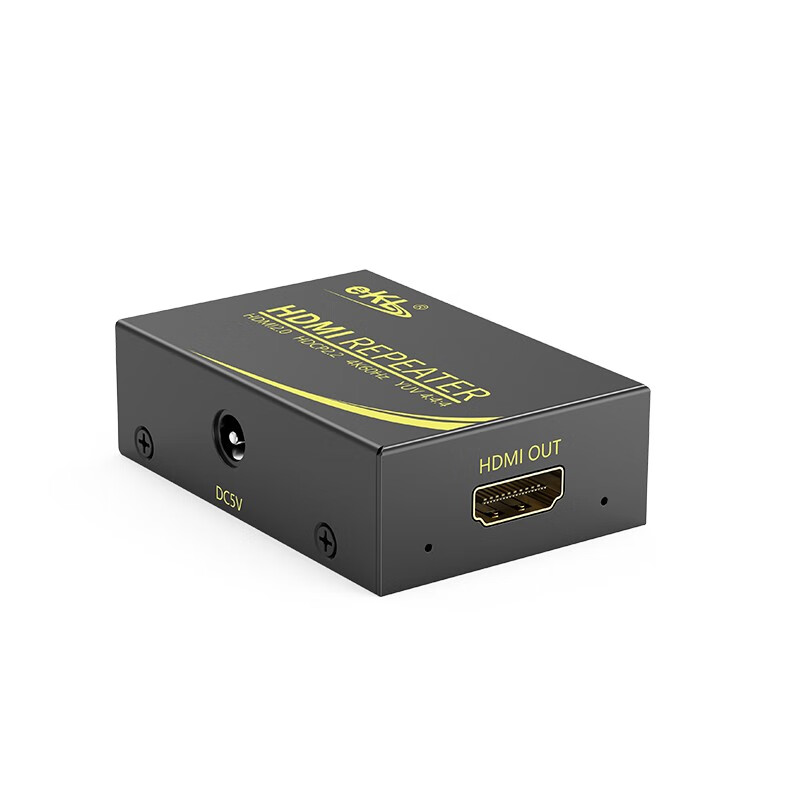

**Product Interfaces:**
HDMI IN: Input device
HDMI OUT: Output device
DC5V: Power input

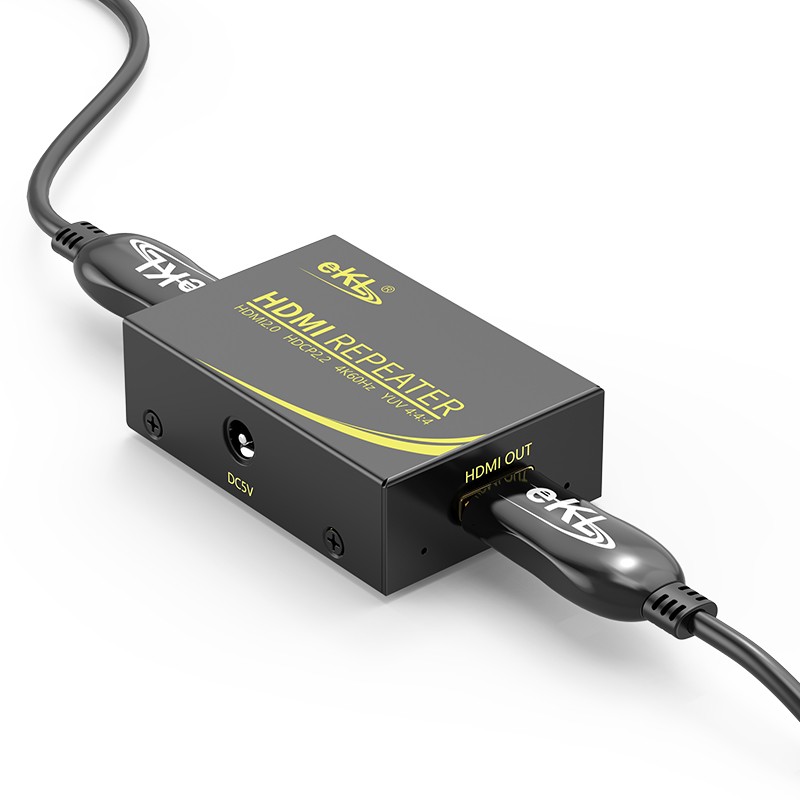

**Note:** HDMI signal extenders are directional and should not be inserted in reverse at the input and output ends.
