**Product Specifications:**
**Brand:** EB-LINK

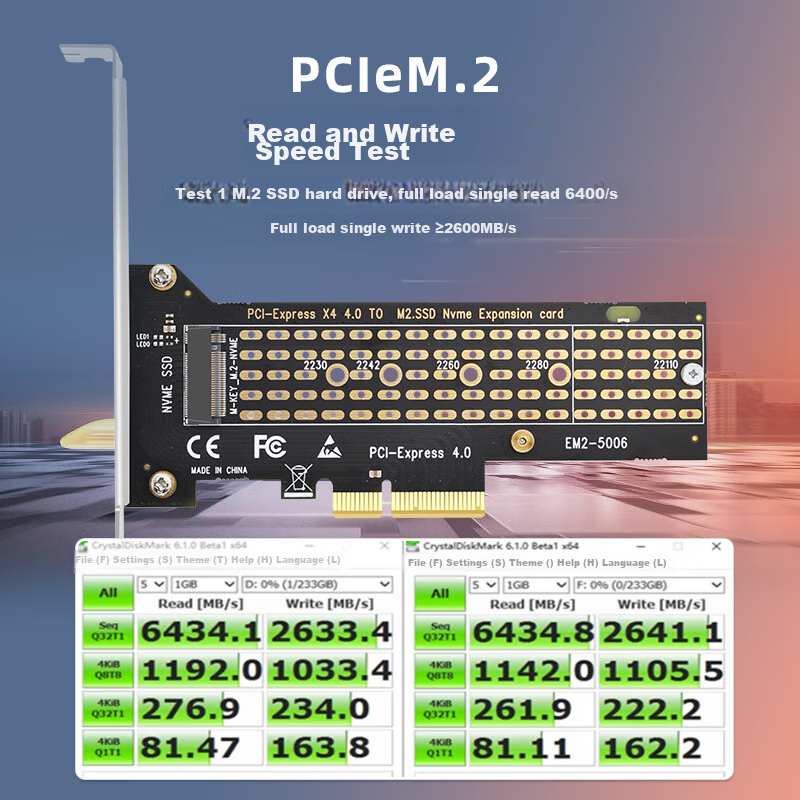

**Product Name:** PCIe x4 to Single Port M.2 NVMe SSD Adapter Card
**Description:** The EB-LINK PCIe x4 to Single Port NVMe Adapter Card allows for high-speed expansion and transfer of M.2 NVMe SSDs. It is designed to enhance hard drive performance and provide stable and fast data transfer. The installation is simple and offers high-speed transmission, allowing for easy expansion and stable performance.
**Features:**
- Supports PCIe 4.0 x4 to single port M.2 NVMe
- PCIe 4.0 x4 interface for improved hard drive performance and high-speed expansion
- Simple installation and high-speed data transfer
- Stable performance for enhanced computer functionality
**Benefits:**
- Solves common computer performance issues
- Improves overall system speed and performance
- Enhances boot-up and program loading times
- Prevents software crashes and improves multitasking capabilities
**Technical Specifications:**
- Device Interface: M.2 (NVMe)
- Host Interface: PCI Express x4
- Supported Devices: M.2 NVMe SSDs
- Transfer Rate: 6Gbps
- Temperature: Operating (0°C to 70°C), Storage (-25°C to 80°C)
- Dimensions: Full-height bracket 120mm, Main card 110mm x 67mm
- Certifications: FCC, CE, RoHS
- Manufacturer: Shenzhen Rui Zhi Guang Technology Co., Ltd.
**Compatibility:**
- Supports PCIe 4.0 x4, compatible with PCIe x4, x8, x16
- Supports NVMe protocol and PCIe 4.0 protocol for M.2 NVMe SSDs
- Length compatibility: 2230, 2242, 2260, 2280, 22110mm
**Additional Information:**
- Gold-plated PCIe x4 connector for improved performance and longevity
- Includes full-height bracket (12cm) and half-height bracket (8cm) for different case sizes
- Supports various M.2 NVMe SSD sizes and interfaces
For more detailed information, please refer to the official EB-LINK website.
